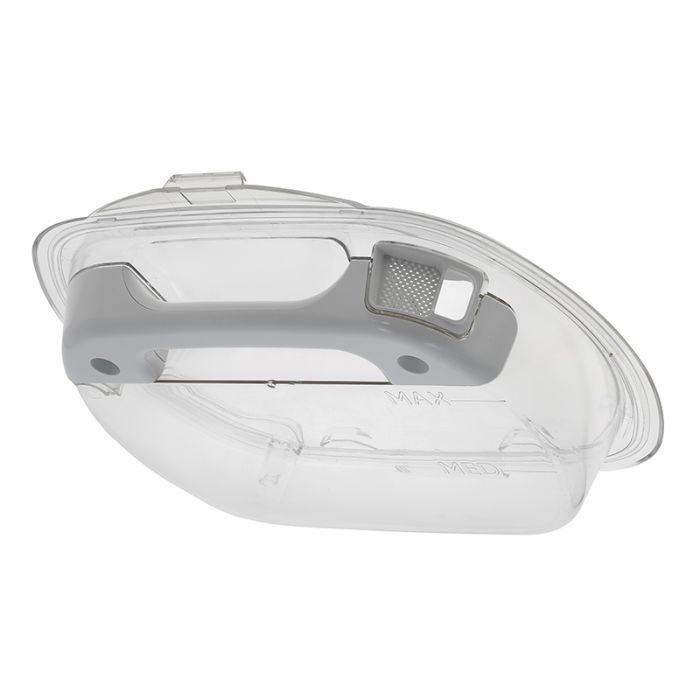

Compatible Tumble Dryer Water Tank
Replacement tumble dryer water container assembly – compatible with Candy, Hoover and Otsein as shown unless advised otherwise
Description
Restore your condenser tumble dryer to full working order with this compatible water container assembly.
The container collects the condensed water extracted from the laundry during the drying cycle and slides into its housing at the top or rear of the appliance. Manufactured to match the original part's specifications and performance, it offers a direct fit for the intended models with the correct capacity, shape and outlet valve arrangement. The assembly is supplied complete, ready to slide into position and connect to the condenser drain path.
This container is only known to fit the Candy, Hoover, and Otsein models as shown or as advised, and it will not fit any others because, even if it looks the same, it probably won't. There will often be several that look alike yet are not; please take time to ensure this is correct before ordering. If you are unsure, please don't hesitate to contact us and ask for assistance.
Water containers commonly fail through cracks or splits that develop around the seams, handles or base, or through damage to the integrated float mechanism that signals when the container is full. Typical symptoms include water leaking from the container housing, the container not seating correctly in its slot, the dryer stopping mid-cycle with a tank-full warning even when the container is empty, or visible cracks in the plastic that worsen over time.
Replacement is the reliable solution, and this compatible container matches the original part's specifications and performance.
Technical Notes
Specifications: Compatible tumble dryer water container assembly (condenser water tank). Material: durable, food-safe plastic. Colour: clear with grey fittings. Capacity: approximately 4–5 litres depending on model. Supplied complete with integrated float mechanism where applicable. Product code: MIS1121.
Safety note: No electrical connection is required for this part. Always disconnect the appliance from the mains supply before removing or refitting the container. Empty any residual water before handling, as the container can be heavy when full. Do not force the container into its housing, as excessive pressure can damage the container or the locating slots.
Fitment guidance: This water container assembly fits only the Candy, Hoover and Otsein tumble dryer models listed in the compatibility matrix below. Model numbers can be found on the rating plate on the inner edge of the door or on the rear panel of the appliance.
CANDY TUMBLE DRYER
CBTD 7A1TE-S, CBTD H7A1TE-80, CS C8DF-80, CS C9DE-47, CS C9DSES-47, CS H10A2DE-47, CS H10A2DE-S, CS H7A2DE-S, CS H7A2LE-S, CS H8A1LE-S, CS H8A2DE-47, CS H8A2DE-S, CS H9A2DE-47, CS H9A2DE-S, CS4 H7A1DE-S, EVOC 1379NXB-47, EVOC 1379XB-47, EVOC 5710NB-S, EVOC 5810NB-S, EVOC 5913B-47, EVOC 5913NBX-47, EVOC 7813NB-S, EVOC 7910NB-S, EVOC 8813AB-47, EVOC 9813NA1-47, EVOC 9813NA1X-47, EVOC 9813NA2X-47, EVOC 9813XA-47, EVOC 981A-S, EVOH 9713NA1-01, EVOH 9713NA1-S, EVOH 9813NA1-S, EVOH 9813NA2-01, EVOH 9813NA2-S, GCC 51013NB-47, GCC 5813NB-80, GCC 6912PPB-47, GCC 6912PPNB-47, GCC 7913NB-47, GCC 7913NBS-47, GCH 9813NA1-S, GCS 91013A2-S, GCS 9913A1-S, GCS H7A2LE-84, GOC 1379 XB, GOC 79132XB, GOC 7913C-12, GOC 7913XB, GSV C10TE-80, GSV H9A2TE-80, GVC 71013NB-S, GVC 71013NB-S, GVC 71013NBX-47, GVC 7810NB-47, GVC 7813NB-S, GVC 7813NBX-47, GVC 7913NB-S, GVC 7913NB-S, GVC 7913NBX-47, GVC D1013B-07, GVC D1013B-80, GVC D1013B-S, GVC D1013BX-47, GVC D813B-12, GVC D813B-47, GVC D813B-S, GVC D913B-12, GVC D913B-S, GVC D913BX-47, GVCD913B-12, GVH 9813NA1-S, GVH 9813NA1-S, GVH 9913NA1-S, GVH 9913NA1X-47, GVH 9913NA2-S, GVH 9913NA2X-47, GVH D1013A2-S, GVH D813A1-S, GVH D813A2-S, GVH D913A2-80, GVH D913A2-S, GVH D913A2C-80, GVH D913A2X-47, GVS C10DE-80, GVS C10DE-S, GVS C8DCE-47, GVS C8DE-S, GVS C9DCE-47, GVS C9DE-S, GVS D913A2-S, GVS H10A2TCE-S, GVS H10A2TCEX-47, GVS H10A2TCEX-KO, GVS H8A2TCE-S, GVS H8A2TCEX-01, GVS H9A2DCE-80, GVS H9A2DE-80, GVS H9A2TCE-S, GVS H9A2TCEX-47, GVS HY9A2TCE-S, GVS HY9A2TCEX-01, GVS4 H7A1TCEX-01, GVS4 H7A1TCEX-S, GVSF C10TCEX-47, GVSF H9A2TCEX-01, GVSFH10A2TCEX-01, SLC D813B-S, SLH D1013A2-S, SLH D813A2-84, SLH D813A2-S, SLH D813A2X-47, SLH D913A2-S, SLH D913A2X-47
HOOVER TUMBLE DRYER
DMC D1013B-80, DMC D1013BC-80, DMC D1013BX-S, DMC D10AVB-80, DMCG D1013B-84, DMH D1013A2-80, DMH D1013A2X-07, DMH D1013A2X-S, DNC D813B-80, DNC D813BC-80, DNC D813BX-S, DNC D8513BX-AUS, DNC D913B-80, DNC D913BX-S, DNC D91BC-80, DNCG D813B-84, DNCG D913B-84, DNH D813A1X-S, DNH D813A2-80, DNH D813A2-84, DNH D8513AX-AUS, DNH D913A2-84, DNH D913A2C-80, DNH D913A2X-S, DX C10DCE-S, DX C10DE-80, DX C10TCE-80, DX C10TCEB-80, DX C8DE-80, DX C8TCE-80, DX C9DCE-80, DX C9TCE-80, DX H10A2TCE-80, DX H10A2TCEX-S, DX H8A2TCEX-01, DX H8A2TCEX-S, DX H9A2DCE-80, DX H9A2DE-80, DX H9A2TCE-80, DX H9A2TCEX-S, DX HY10A1TCE-80, DXW C10BTCEX-47, DXW H9A2TCEX-01, DXW4 H7A1TCEX-01, DXW4 H7A1TCEX-S, DXWHY10A1TCEX-01, DYC 169A-80, DYC 169A-80N, DYC 71013NB-80, DYC 71013NBX-S, DYC 71013NBX-S, DYC 710AVBX-80N, DYC 7813NB-80, DYC 7813NBX-84, DYC 7813NBX-S, DYC 7913NBX-84, DYC 7913NBX-S, DYC 8132BX-80N, DYC 8713BX-AUS, DYC 8813B-80, DYC 8813BX-84, DYC 8813BX-S, DYC 8913B-80, DYC 8913BX-47, DYC 8913BX-84, DYC 8913BX-S, DYC 893B-80, DYC 9445BX-47, DYC 9713AX-AUS, DYC 9813AX-S, DYC 9913AX-30, DYC 9913AX-80, DYC 9913AX-S, DYC 9913AXX-S, DYC 9914AX-S, DYC8132BX-80, DYH 9813NA1X-S, DYH 9813NA2X-30, DYH 9813NA2X-S, DYH 983NA1-S, DYH 9913NA1X-80, DYH 9913NA1X-84, DYH 9913NA1X-S, DYH 9913NA2X-84, DYH 9913NA2X-S, DYH 993NA1-S, GDX H10A2DCEX-84, GDX H8A2DCEX-84, GDX H8A2DKEX-84, GDX H8A2TCEX-84, GDX H9A2DCEX-84, GDX HY9A2TCEX-84, GHL C10DE-84, GHL C8DE-84, GHL C9DE-84, GHLC C8DE-84, GHLC H8A2DE-84, HADC 7913NBX-47, HADC 8913BX-47, HADC 9913AX-47, HADC 9913NA1X-47, HBTDW H7A1TCE-80, HL C9DCE-80, HL H8A2DE-84, HL H8A2DE-S, HL H9A2DE-S, HTDBW H7A1TCE-80, LLC D813BX-S, LLCG D713B-84, LLH D813A2X-S, LLHG D813A2-84, VHC 970AT-84, VHH 99A-80N, VHH 99A-80N, VTH 980 NA2C-84
OTSEIN TUMBLE DRYER
DOHC 7813B-37, DOHC 7813NB-37, DOHC 7913B-37, DOHC 7913NB-37, DOHC 9813NA1-37, DOHC 9913NA2-37, ODMH D1013A2X-37, ODNC D813B-37, ODNH D913A2-37
Get Expert Tumble Dryer Spare Part Help
Can't find your model number listed or need help identifying the correct part? Contact our parts advisors with your full model and serial number, and we'll verify the correct part for your appliance.
| Further Description |
Common Faults & SymptomsThe following fault codes and symptoms are commonly reported when this part begins to fail. Use this as a diagnostic guide before ordering a replacement — if more than one of these is present, the part is the likely culprit. 1
Water Leaking From the Container Housing
The most common symptom of a failed water container. Water pools around the container housing or drips down the front of the appliance during the drying cycle. This is usually caused by a crack in the container body, a damaged seal around the outlet valve, or a split in the plastic seam. Remove the container and inspect it in good light for visible damage before ordering a replacement.
2
Error Code E04 or E4 (Candy / Hoover) — Water Tank Full
Candy and Hoover tumble dryers may display E04 or E4 when the tank-full sensor is triggered, even though the container has been emptied. This can be caused by a faulty float mechanism inside the container, or by water not draining correctly from the condenser sump into the container. Check that the container is seated correctly and that the float moves freely before assuming the sensor itself has failed.
3
Container Not Seating Correctly in Its Housing
A warped or damaged container may not slide fully into its housing, leaving a gap that prevents the tank-full sensor from operating correctly. This can cause the dryer to stop mid-cycle or to display a fault code even when the container is empty. Check that the container runners and the housing are clean and free from debris, and that the container is the correct shape for the model.
4
Visible Cracks or Splits in the Container Body
Remove the container and examine it in good light for cracks, splits or stress marks, particularly around the seams, the handle and the base. Even a hairline crack will worsen with the daily cycle of filling and emptying, and will eventually cause a leak. A cracked container cannot be repaired reliably and should be replaced.
5
Float Mechanism Sticking or Not Moving Freely
The float inside the container tells the dryer when the container is full and needs emptying. If the float becomes stuck, the dryer may continue running with a full container, causing water to overflow, or it may stop prematurely when the container is still empty. Remove the container, empty it, and check that the float moves freely up and down. If it is jammed by debris or limescale, a replacement container is the most reliable solution.
6
Dryer Stops Mid-Cycle With No Obvious Fault
If the dryer stops partway through a cycle and no error code is displayed, the tank-full sensor may be triggering incorrectly. This can happen when the container is not seated properly, when the float is stuck, or when water is not draining from the condenser into the container. Check that the container is correctly positioned and that the condenser drain path is clear before ordering a replacement.
7
Container Difficult to Remove or Refit
A container that has warped or has damaged locating lugs can be difficult to slide in and out of its housing. Forcing a damaged container can cause further damage to the housing and the sensor mechanism. If the container no longer moves smoothly, inspect it for distortion and replace it if necessary.
8
Tank-Full Warning Persists After Emptying
If the tank-full warning remains on the display after the container has been emptied and refitted, the float mechanism or the sensor may be at fault. Confirm that the float is not stuck and that the container is correctly seated. If the warning persists with a known-good container, the sensor or its wiring may need attention.
Fitment GuidanceThis water container assembly is compatible only with the Candy, Hoover and Otsein tumble dryer models listed in the compatibility matrix above. Even if a container looks visually similar, the dimensions, the position of the outlet valve and the float mechanism can differ between models, so a part that appears to fit may not seat correctly or may trigger false tank-full warnings.
Diagnostic TipsBefore concluding that the container has failed, carry out these checks to rule out other causes. No specialist tools are required for a visual inspection.
Installation GuideThese steps describe the general procedure for replacing a tumble dryer water container assembly. The exact sequence varies between models, so always consult the appliance manual where available.
Before Ordering, Check These First
Disclaimer: The fault codes and symptoms listed above are intended as a general guide to assist with diagnosis. They cannot be taken as a definitive diagnosis of any particular problem, and other components may produce similar symptoms. Always confirm the fault with proper testing before ordering parts. |
|---|---|
| Alternate Part Number | 5045176567686, 40006629, 40008542, 40006629, 5045176567686, CAN40008542, 40008549, 40009648, HVR40009648, HVR40008542, 5055004621855, 40006253, HVR49125480, 2.08.30.02-0, 49125480, QUAMIS1121 |
| EAN Number | MIS1121 |
| Manufacturer | CAN |
| Genuine Part | Alternative |
