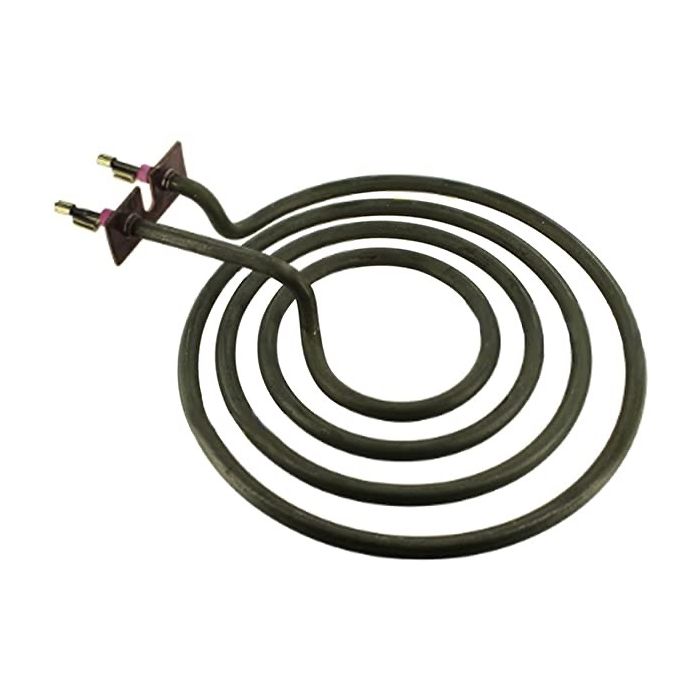

6" Cooker Hob Hotplate Ring Spiral Element
6" universal cooker hotplate spiral or radiant ring type
Descripton
These radiant rings, also known as those in the trade, are very common on freestanding cookers.
While some hobs still use them, they’re now rare.
When they fail, they often do so with a pop, as a small area blows on them.
Replacing them is relatively easy, but you must switch off the power for safety.
The most common types are the 6-inch, the smallest, the 7-inch, considered the larger ringplate, and the dual-ring, which has a smaller central ring that heats in the middle but also uses the outer ring for a larger cooking area.
Imperial measurements are still used, as they date back to the introduction of electric cookers and are still common in the US market.
If you’re unsure or need a replacement part for your oven or cooker, feel free to email us for more information or advice.
Technical Notes
Element failures are usually easy to diagnose.
When faulty, the element often warps, twists, or splits, sometimes appearing to “blow” but actually being powder escaping as the element breaks.
Most hob ring elements glow red, known as “infrared” elements.
Generally, these cooker ring elements are easy to replace. However, as always with electrical appliances like ovens and cookers, isolate the appliance from the mains power for safety.
Never work on a live cooker or oven; it’s extremely dangerous.
Hob elements can also be like other spare parts, prone to cheap and poor-quality replacements that fail sooner if they work at all. Additionally, they’re often poorly constructed, making them harder to fit.
Get Expert Help
Can't find your model number listed or are unsure? Contact our parts advisors before ordering. We can check the parts network to verify your part first time.
| Further Description | 1100 Watts :: 6" Single :: Height: 165mm :: Width 137mm :: Bracket : 50mm :: Tags: 26mm |
|---|---|
| Alternate Part Number | QUACS01, BEL082605120, DST572374255014, HPTC00233756, 5031680063684, 5045172308849, ELE993 |
| Manufacturer | Low Cost Spare Parts |
| Genuine Part | Alternative |
