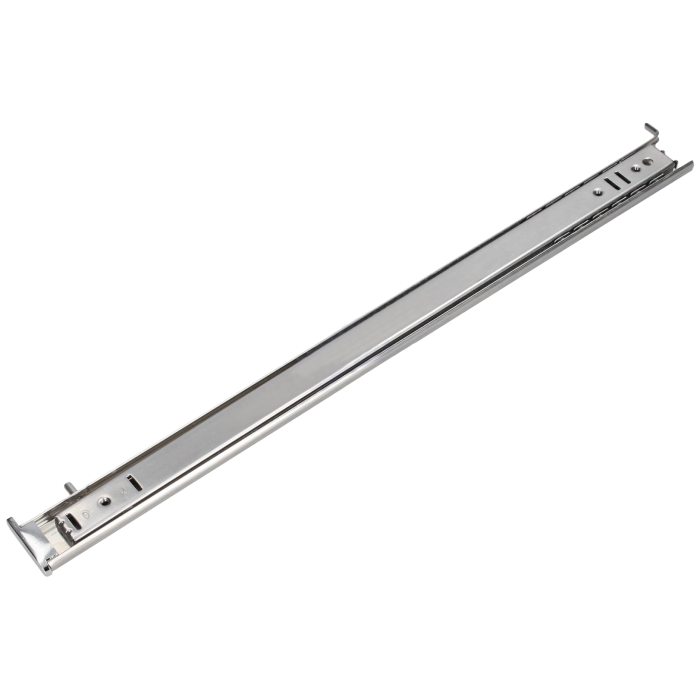

Right Hand Telescopic Oven Rail
Replacement telescopic oven rail – compatible with Samsung built in oven models as shown unless advised otherwise
Description
Bring back the smooth, effortless glide to your Samsung built-in oven with this genuine telescopic rail. As an original Samsung component, it matches the rail fitted at the factory in fit, finish, and load-bearing performance.
The rail extends fully and retracts smoothly, allowing heavy baking trays and roasting tins to be pulled out safely without the risk of tipping. Made from durable stainless steel, it is designed to withstand heat cycles and the daily use of a busy kitchen.
Telescopic rails can fail over time due to wear, physical stress, or accidental damage during cleaning. A rail that no longer slides smoothly, feels gritty or has collapsed under load can make it difficult to remove hot trays safely, increasing the risk of spills and burns. Replacing the rail restores smooth operation and keeps trays stable throughout the cooking cycle. This genuine replacement is manufactured to match the original part's specifications and performance.
This part will only fit the models shown or as specifically advised and will not fit any others, as even if it looks the same, it probably won't be, since several look alike but aren't interchangeable. Please take time to ensure this is correct before ordering. If you are unsure, please don't hesitate to contact us and ask for assistance.
Fits the right hand side only
Technical Notes
Specifications: Genuine Samsung telescopic oven rail (right side). Material: stainless steel. Finish: STS30. Product code: DG61-00469A.
Safety note: No electrical connection is required for this part. Allow the oven to cool completely before handling. Wear gloves when removing the old rail, as edges may be sharp.
Fitment guidance: This rail fits only the Samsung built-in oven models listed in the compatibility matrix below. Model numbers can be found on the rating plate located on the rear panel or on the inner edge of the oven cavity.
SAMSUNG BUILT IN OVEN
BQ1D4T081/XSA, BQ1Q4T102/XSA, BQ1Q6T092XEF, BQ1VD6T131, BQ2D7G144XEO, BT62TDBB, BT62TDBSTXEE, NV64R3531BS, NV66M3531BS, NV6783BGESR/EF, NV68A1110BB, NV68A1110RB, NV68A1110RS, NV68A1140BB, NV68A1140BK, NV68A1140BS, NV68A1145CK, NV68A1145RK, NV68A1170BS, NV6986BJUSR/EE, NV70F2793NS/EF, NV70F7584DS/SA, NV70F7786ES/EG, NV70F7796ES/EE, NV70F7796MS, NV70H5587BB/EG, NV70K2340RM, NV70M2341RS, NV70M3571RS/EF, NV75A6549RS, NV75A6579RS, NV75J5170BS, NV75J5540RS/EE, NV75K5541RB, NV75K5541RS, NV75K5571RM/EU, NV75K5571RS/EF, NV75M5572RS/EF, NV75N5641RS, NV75N5671RM, NV75N5671RMEF, NV75N5671RS/EF, NV75N7546RS, NV75N7677RS, NV75R5671RM/EG, NV75R7646RB, NV75R7676RB/EG, NV75R7676RS/EF, NV75T8549RK, NV75T8879RK, NV75T8979RK, NV75T9549CD, NV75T9879CD, NV7B4020ZAK, NV7B4020ZAS, NV7B4040VAK, NV7B4040VAS, NV7B4040VAW, NV7B4045VAK, NV7B41201AK, NV7B41201AS, NV7B41205AK, NV7B41207AK, NV7B41207AS, NV7B4125ZAK, NV7B4125ZAS, NV7B41301AS, NV7B41301ASU1, NV7B41307AK, NV7B41307AS, NV7B41403AK, NV7B41403AS, NV7B4140VAK, NV7B4140VAS, NV7B4145VAK, NV7B4220ZAB, NV7B4225ZAK, NV7B4225ZAS, NV7B4240VAK, NV7B4245VAK, NV7B4245VAS, NV7B4245VAW, NV7B43251AK, NV7B4345VAK, NV7B44205AK, NV7B44205AS, NV7B44207AK, NV7B44207AS, NV7B4420ZAW, NV7B44251AK, NV7B44257AK, NV7B4430ZAB, NV7B4430ZAS, NV7B4440VAK, NV7B4445UAS, NV7B4445VAK, NV7B45251AK, NV7B4525ZAK, NV7B4525ZAS, NV7B45305AS, NV7B4545VAK, NV7B4545VAS, NV7B5645TAS, NV7B5660RAK, NV7B5660XAK, NV7B5685AAK, NV7B5685BAK, NV7B5745PAK, NV7B5745PAS, NV7B5745TAS, NV7B5755SAK, NV7B5755SAS, NV7B5765RAK, NV7B5765XAK, NV7B5785KAK, NV7B6665IAA, NV7B6685AAN, NV7B6685BAK, NV7B6785KAK, NV7B6795JAK, NV7B6799JAK, NV7B7997AAA, NV7B7997AAK, NQ50A6539BK, NQ50J9530BS, NQ50T8539BK, NQ50T8939BK, NQ50T9539BD, NQ50T9939BD, NQ5B4353FBK, NQ5B4353HBK, NQ5B4553FBS, NQ5B4553FBK, NQ5B4553HBK, NQ5B5763DBB, NQ5B5763DBK, NQ5B5763DBS, NQ5B6753CAA, NQ5B6753CAK, NQ5B6753CAN, NQ5B7993AAK
Get Expert Samsung Spare Part Help
Can't find your model number listed or need help identifying the correct part? Contact our parts advisors with your full model and serial number, and we'll verify the correct part for your appliance.
| Further Description |
Common Faults & SymptomsThe following symptoms are commonly reported when this part begins to fail. Use this as a diagnostic guide before ordering a replacement — if more than one of these is present, the part is the likely culprit. 1
Rail Does Not Slide Smoothly
The telescopic rail feels gritty, stiff, or requires excessive force to extend and retract. This is often the first sign of wear in the ball-bearing mechanism or a build-up of baked-on grease and debris. A rail that does not glide smoothly makes it difficult to remove hot trays safely and increases the risk of spills.
2
Rail Collapses Under Load
The rail gives way or drops when a heavy tray is placed on it, causing the tray to tilt or fall. This indicates that the internal telescopic mechanism has failed or the mounting bracket has bent. A collapsing rail is a safety hazard, as hot food or liquid can spill when the tray tips.
3
Broken or Bent Mounting Bracket
The bracket that secures the rail to the oven side wall may crack or bend through physical stress or accidental impact. A damaged bracket prevents the rail from sitting level, which can cause trays to sit unevenly and cook inconsistently. Inspect the bracket for hairline cracks or distortion.
4
Tray Does Not Sit Level
When the tray is placed on the rail, it sits at an angle rather than flat. This can be caused by a bent rail, a damaged bracket, or the rail not being correctly seated in the oven side runner. An uneven tray leads to uneven cooking and may cause batter or oil to pool to one side.
5
Rail Detaches from Side Runner
The rail may come loose from its mounting points, either partially or completely. This can happen if the retaining clips are worn or if the rail has been removed and refitted incorrectly during cleaning. A detached rail can fall inside the oven and damage other components.
6
Noise During Operation
A rattling or scraping noise when the rail is extended or retracted indicates internal wear or a loose component. While not always a functional failure, persistent noise is a sign that the rail is deteriorating and may soon fail completely.
Fitment GuidanceThis telescopic rail is compatible only with the Samsung built-in oven models listed in the compatibility matrix above. Even if a rail looks visually similar, mounting points and rail lengths can differ between models, so a part that appears to fit may not sit securely.
Diagnostic TipsBefore concluding that the rail has failed, carry out these checks to rule out other causes. No specialist tools are required for a visual inspection.
Installation GuideThese steps describe the general procedure for replacing a telescopic oven rail. The exact sequence varies between models, so always consult the appliance manual where available.
Before Ordering, Check These First
Disclaimer: The fault codes and symptoms listed above are intended as a general guide to assist with diagnosis. They cannot be taken as a definitive diagnosis of any particular problem, and other components may produce similar symptoms. Always confirm the fault with proper testing before ordering parts. |
|---|---|
| Alternate Part Number | SAMDG61-00469A, DG6100469A, 5045382518250 |
| Manufacturer | SAM |
| Genuine Part | Yes |
