ZN Limiter Cooling Fan Control
Cooling fan control thermostat kit to fit many <span id="brandname"></span> built in oven and cooker models including some double ovens

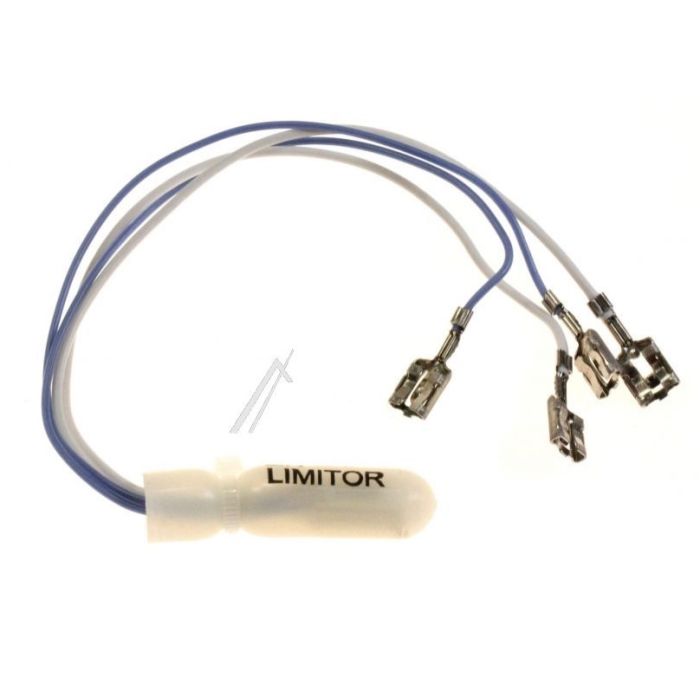

This little thermostat, marked as a "ZN Limitor" controls the cooling fan on the oven models listed. When it goes faulty the cooling fan will normally fail to run causing the oven to overheat and cut out. When this happens your oven will go totally dead after about ten to fifteen minutes, no lights, no clock or anything else will power up.
The cure is, almost 100% of the time, to simple replace this little thermal limiter and you're back in business again.
If you are not sure if this part is fitted to your oven please contact us with the model number and the PNC number from the rating plate of the oven or cooker and we will help you.
AEG Oven & Cooker
41016VH-WN 23T, B1100-5-W EU R08, B2100-4-M UK R05, B3101-1-M, 41016VI-WN 24T, B1180-4 W UK R07, B2100-4-W UK, B3101-1-W, 41056VH-MN 23T, B1180-4-B UK, B2100-4-W UK R05, B3101-4-B UK, 41056VH-MN 71L, B1180-4-M UK, B2100-5-M AUS, B3101-4-B UK R05, 41056VI-MN 24T, B1180-4-M UK R05, B2100-5-M UK R08, B3101-4-D UK, 41056VI-MN 66L, B1180-4-W UK, B2100-5-W UK R08, B3101-4-D UK R05, 41136VE-WN 00U, B1180-5-M UK R08, B3000-1-M, B3101-4-M UK, 61016VI-AN 24T, B2100-4-B UK, B3000-1-W, B3101-4-M UK R05, 61016VI-WN 24T, B2100-4-B UK R05, B3100-5-M EU R08, B3101-4-W UK, B1100-5-M EU R08, B2100-4-M UK, B31010-2-M, B3101-4-W UK R05, B3101-5-B EU R08, B3151-5-M DE R08, B31915-4-A, B41010-5-M DE R08, B3101-5-B UK R08, B3151-5-M IT R08, B31915-4-M, B41012-5-M NORDIC R, B3101-5-M EU R08, B31813-1-AL, B31915-5-M EU R, B4101-4-A UK, B3101-5-M UK R08, B31813-1-D, B3191-5-M AUS, B4101-4-B UK, B3101-5-W EU R08, B31813-1-M, B3191-5-M EU R08, B4101-4-B UK R05, B3101-5-W UK R08, B31813-1-W, B3301-5-M EU R08, B4101-4-M UK, B3150-4-M R07 IL, B3191-4-A, B33512-5-M DE R08, B4101-4-M UK R05, B3150-5-M IL R08, B3191-4-D, B3351-5-D DE R08, B4101-4-W EURO, B31510-5-M DE R08, B3191-4-M, B3351-5-M DE R08, B4101-4-W UK, B3151-5-B IT R08, B3191-4-W, B3351-5-W DE R08, B4101-4-W UK R05, B41015-5-M R08, B4101-5-M EL R08, B4300-1-M IL, B44319-5-W NORDIC, B4101-5-A DE R08, B4101-5-M EU R08, B4300-1-W IL, B6100-1-D, B4101-5-A EU R08, B4101-5-M EU2 R08, B4301-5-M EU R0, C3000-5, B4101-5-A EU2 R08, B4101-5-M IL R08, B43016-4-M, CB1100-1-B EURO, B4101-5-A IT R08, B4101-5-M IT R08, B43016-5-M DE R08, CB1100-1-B EURO, B4101-5-B EU R08, B4101-5-M UK R08, B43019-4-M R07, CB1100-1-D EURO, B4101-5-B IT R08, B4101-5-W DE R08, B43019-5-M DE R08, CB1100-1-D EURO, B4101-5-B UK R08, B4101-5-W EU R08, B4431-5-B EU R08, CB1100-1-M EURO, B4101-5-D DE R08, B4101-5-W EU2 R08, B44319-5-A NORDIC, CB1100-1-M EURO, B4101-5-M DE R08, B4300-1-B IL, B44319-5-M NORDIC, CB1100-1-W EURO, CB4100-1-A UK, CB4100-1-M EURO, CB4100-1-W SKAND., CB6100-1-D, CB4100-1-B, CB4100-1-M EURO, CB4100-1-W UK, CB6100-1-M, CB4100-1-B EURO, CB4100-1-M SKAND., CB41005-1-A, CB6100-1-M EURO, CB4100-1-B EURO, CB4100-1-M UK, CB41005-1-M, CB6100-1-M EURO, CB4100-1-B FRANCE, CB4100-1-M2, CB6100-1-A, CB6100-1-M UK, CB4100-1-B SKAND., CB4100-1-W, CB6100-1-A EURO, CB6100-1-W, CB4100-1-D, CB4100-1-W EURO, CB6100-1-A EURO, CB6100-1-W EURO, CB4100-1-D EURO, CB4100-1-W SKAND., CB6100-1-B, CB6100-1-W EURO, CB4100-1-D EURO, CB4100-1-W EURO, CB6100-1-B EURO, CB6100-1-W UK, CB4100-1-D UK, CB4100-1-W FRANCE, CB6100-1-B EURO, CB8100-1-A, CB8100-1-B, CE1100-1-W EURO, CE3100-1-B EURO, CE31002-1-W, CB8100-1-D, CE1100-1-W EURO, CE3100-1-D EURO, CE3190-1-B EURO, CB8100-1-M, CE1100-2-B EURO, CE3100-1-D EURO, CE3190-1-B EURO, CB8100-1-W, CE1100-2-B EURO, CE3100-1-M EURO, CE3190-1-M EURO, CB81005-1-A, CE1100-2-M EURO, CE3100-1-M EURO, CE3190-1-M EURO, CB81005-1-M, CE1100-2-M EURO, CE3100-1-W EURO, CE33002-1-D, CE1100-1-B EURO, CE1100-2-W EURO, CE3100-1-W EURO, CE33002-1-D CHAMPION, CE1100-1-B EURO, CE1100-2-W EURO, CE31002-1-B, CE33002-1-D SPIRIT, CE1100-1-M EURO, CE31000-1-M CAMPAIGN, CE31002-1-D, CE33002-1-EW, CE1100-1-M EURO, CE3100-1-B EURO, CE31002-1-M1, CE33002-1-M CHAMPION, CE33002-1-M SPIRIT, CE4100-1-B EURO, CE4100-1-W EURO, CE43003-2-D CAMPAIGN, CE33002-1-M1, CE4100-1-D, CE41002-1-D, CE43003-2-M CAMPAIGN, CE33002-1-W CHAMPION, CE4100-1-D EURO, CE41002-1-M1, CE43003-2-W CAMPAIGN, CE33002-1-W SPIRIT, CE4100-1-D EURO, CE41002-1-W, E1100-2-B SA, CE4100-1-A, CE4100-1-EW, CE41002-2-D CAMPAIGN, E1100-2-M SA, CE4100-1-A EURO, CE4100-1-M EURO, CE41002-2-M CAMPAIGN, E1100-2-W SA, CE4100-1-A EURO, CE4100-1-M EURO, CE41002-2-W CAMPAIGN, E1100-4-M SA R07, CE4100-1-A SKAND., CE4100-1-M SKAND., CE4106-1-B, E1100-5-M EU R08, CE4100-1-B, CE4100-1-M2, CE4106-1-M2, E1100-5-M SA R08, CE4100-1-B EURO, CE4100-1-W EURO, CE4106-1-W, E2190-1-A, E2191-4-A UK, E3101-5-M EU R08, E31552-5-M EU(ML), E33002-1-W EUROLINE, E2191-4-A UK R05, E31502-5-D DE R08, E31552-5-W EU(ML), E33512-5-D DE R08, E30002-3-D, E31502-5-M DE R08, E31559-5-D EU(ML), E33512-5-D EU(ML), E30002-3-M, E31502-5-M EU(ML), E31559-5-M EU(ML), E33512-5-M DE R08, E30002-3-W, E31502-5-W DE R08, E31559-5-W EU(ML), E33512-5-M EU(ML), E31012-2-D, E31510-5-M DE R08, E31560-5-M DE R08, E33512-5-W DE R08, E31012-2-M, E31512-5-M DE R08, E31915-5-M EL R08, E33512-5-W EU(ML), E31012-2-W, E31512-5-M EU(ML), E3191-5-M EU R08, E3351-5-D DE R08, E3101-4-M EURO, E3151-5-M DE R08, E33002-1-D EUROLINE, E3351-5-M DE R08, E3101-4-W EURO, E31552-5-D EU(ML), E33002-1-M EUROLINE, E3351-5-W DE R08, E33519-4-D R07, E4101-5-A DE R08, E4105-5-M EU(ML), E43019-5-M DE R08, E33519-4-M R07, E4101-5-A EU R08, E41065-5-M R08, E43019-5-M EU(ML), E33519-4-W R07, E4101-5-D DE R08, E4106-5-M DE R08, E43066-4-M, E33519-5-D DE R08, E4101-5-D EL R08, E4107-5-M EU(ML), E43066-5-M DE R08, E33519-5-M DE R08, E4101-5-M DE R08, E43012-5-D DE R08, E4431-5-W EU R08, E33519-5-W DE R08, E4101-5-M EL R08, E43012-5-M DE R08, E44319-5-A NORDIC, E33562-5-M DE R08, E4101-5-M EU R08, E43012-5-M GR R08, E44319-5-M NORDIC, E41.243-1-M 29I, E4101-5-W DE R08, E43012-5-W DE R08, E44319-5-W NORDIC, E41010-5-M DE R08, E4101-5-W EL R08, E43019-4-M R07
Electrolux Oven & Cooker
EKC63307X 25T, EOB 5632W ELUX ITALY, EOB3634X, EOB43140X NL R08 AF, EKC63307X 61P, EOB 5632X ELUX ITALY, EOB3635X, EOB4630K ELUX EURO, EKC63314W 21T, EOB 5665R ELUX ITALY, EOB3637W ELUX SPAIN, EOB4630K ELUX ITALY, EKC63314W 60P, EOB 6635K ELUX ITALY, EOB3637X ELUX SPAIN, EOB4630X ELUX EURO, EKC63314X 21T, EOB 6635X ELUX ITALY, EOB3638W ELUX SPAIN, EOB4630X ELUX ITALY, EKC63314X 60P, EOB33000X EU AFIPRI, EOB3638X ELUX SPAIN, EOB4633W ELUX ASIA, EOB 4612L ELUX ITALY, EOB33100X EU R08 AF, EOB3660R ELUX ITALY, EOB4633X ELUX ASIA, EOB 4612P ELUX ITALY, EOB33300X EU R08 AF, EOB43000X EU AFIPRI, EOB53000X EU AFIPRI, EOB 4612S ELUX ITALY, EOB3630W, EOB43100X EU R08 AF, EOB53000X IT ENV AF, EOB 5632K ELUX ITALY, EOB3630X, EOB43100X SEA/CHINA, EOB53000X SEA/CHINA, EOB53000X UK AFIPRI, EOB5630W UK R05, EOB63100X ISRAEL, EOB6630C UK, EOB53020X DE R08 AF, EOB5630X UK, EOB63100X IT ENV R08, EOB6630K, EOB53100X EU AFIPRI, EOB5630X UK R05, EOB63100X UK AFIPRI, EOB6630K ELUX EURO, EOB53100X ISRAEL, EOB5660R ELUX EURO, EOB63120X DE R08 AF, EOB6630K UK, EOB54000X EU, EOB5665G UK, EOB63300X EU R08 AF, EOB6630K UK R05, EOB5630B UK, EOB5665G UK R05, EOB64140K EU, EOB6630U UK, EOB5630B UK R05, EOB63000X UK AFIPRI, EOB64140U EU, EOB6630W, EOB5630K UK, EOB63100W ISRAEL, EOB64140W EU, EOB6630W ELUX EURO, EOB5630K UK R05, EOB63100X EU AFIPRI, EOB64140X EU, EOB6630W UK, EOB5630W UK, EOB63100X EU R08 AF, EOB6630B UK, EOB6630W UK R05, EOB6630X, EOB6632W UK R05, EOB6640U ELUX NORDI, EON33100X EU ENV A, EOB6630X ELUX EURO, EOB6632X UK, EOB6640W ELUX NORDI, EON4630K ELUX EURO, EOB6630X UK, EOB6632X UK R05, EOB6640X ELUX EURO, EON4630X ELUX EURO, EOB6630X UK R05, EOB6634X, EOB6640X ELUX NORDI, EON53020W DE ENV06, EOB6630XK UK, EOB6636W, EOD33003X -PILOT, EON53020X DE R08 AV, EOB6630XK UK R05, EOB6636X, EON 6640 K ELUX NOR, EON63020X DE R08 AF, EOB6632K UK, EOB6636X UK, EON 6640 W ELUX NOR, EON63100X EU AFIPRI, EOB6632K UK R05, EOB6636X UK R05, EON 6640 X ELUX NOR, EON63100X EU R08 AF, EOB6632U UK, EOB6637X KOREA R05, EON33100K EU ENV06, EON63140W DE, EOB6632W UK, EOB6640K ELUX NORDI, EON33100X EU AFIPRI, EON63140X DE, EON63140X DE R08 AF, EON63360X DE R08 AF, EON6634X, , EON63360X DE, EON64100X EU AFIPRI, EONS23.10 13Q
John Lewis Oven & Cooker
JLBIOS607
Zanussi Oven & Cooker
ZCV663MWC, ZCV663MWC, ZCV663MXC, ZCV663MXC, ZOD370W, ZOD370X, ZOD370X, ZOD580N, ZOD580N, ZOD580X, ZOD580X, ZOU370W, ZOU370X, ZOU580X, ZOU580X, ZOD370W, ZOU270X, ZOU270X, ZOU370N, ZOU370W, ZOU370X
Many thanks to Chris for the photographs used.
| Alternate Part Number | 3872079029, 8996619267611, 3872079003, 3302048008, 8996619273569, 3870889007, 3304922002, 02872182, 2872182, 8996619267611, DST3872079029, LUX3872079029, 14-EL-76, 5031687699428, 5045173496002 |
|---|---|
| Manufacturer | Genuine Lux1AE |
| Genuine Part | Yes |
Oven Thermostats.
An oven or cooker thermostat controls the temperature inside the oven cavity by switching power to the element within a +/-10-15% tolerance.
Fault Diagnosis
When a thermostat is faulty, symptoms are typically binary: the oven won’t heat at all, or it constantly heats and fails to cut out, resulting in burnt food. Safety thermostats operate similarly but are preset to a single cut-off temperature to prevent overheating.
Technical Testing
Almost all thermostats “break” the live supply once set temperature is reached. If the oven is overheating, the circuit remains closed regardless of setting. If it won’t heat, the thermostat fails to “make” the circuit to power the element.
Electrical Safety Warning
Oven thermostats carry live mains power. They must never be worked on while power is applied to the oven or cooker. Always isolate the appliance from the mains before inspection or replacement.
Sourcing Requirements
When buying a thermostat, precision is crucial. While they often appear identical, they vary significantly in temperature ranges, fitments, and knob offsets.
Can't Find The Thermostat You Need?
We strive to simplify the process. If you encounter difficulties, our team is here to assist. Use our contact page or email as a first resort; we can lookup the exact part and identify cost-effective compatible options for you.
IMAGES AND SIZES ARE FOR ILLUSTRATION ONLY
Parts may vary in shape and size to the images shown as parts are model-specific and subject to change or alteration at any time without notice. This spare part will only fit the models as described in the listing unless specifically advised otherwise by us.
NOTE: Many oven thermostats can be used in different positions and are very specific to the make and model fitting. Please take care when ordering and don't rely solely on images as they largely all look the same!
Technical Component Specialist • Genuine & Verified Alternatives • Established 1988
AEG Brand - Electrolux Group
AEG
Spare Parts.
AEG is a German brand within the Electrolux Group. Older German-made appliances were well-regarded, though more recent models vary in quality. Correct identification of spare parts is essential due to multiple variants per appliance.
Model & PNC Verification
To accurately locate AEG spare parts, you will usually need the Product or PNC number from the appliance rating plate. This ensures compatibility across multiple variants, which may range from a few to over thirty per model.
Ordering & Assistance
Some AEG parts are straightforward to order, while others require careful verification. If unsure, please contact us to get guidance on correct parts and possible lower-cost alternatives.
Group Compatibility
AEG spare parts are used across multiple Electrolux Group brands. Thankfully, all products function similarly, making cross-brand identification easier.
Confirm Your AEG Spare Parts
Provide the Product or PNC number from your appliance’s rating plate and our team will confirm the correct AEG spare parts for your model quickly and accurately.
