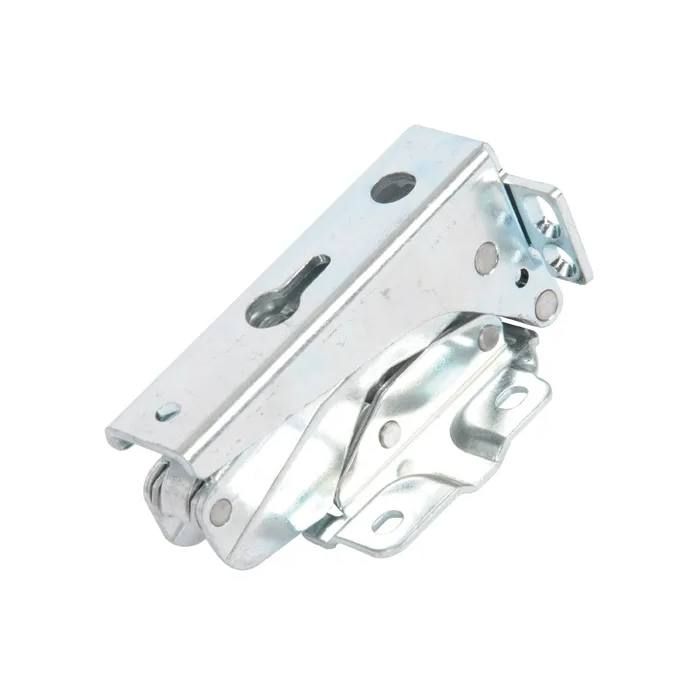

Fridge Freezer Hinge - (Lower Left / Upper Right Hand)
Replacement integrated fridge freezer hinge – compatible with AEG, Electrolux, Küppersbusch and Smeg appliances as shown unless advised otherwise
Description
This genuine integrated fridge freezer hinge is identical to the original part fitted at the factory, so it restores the door action of a built-in appliance exactly as it was designed to work.
Built to the manufacturer's specifications with the same mounting points, pivot geometry, and load-bearing strength, it restores a dropped, stiff, or noisy door to smooth, correctly aligned operation without modification or adaptation.
Integrated appliances conceal their hinges behind the furniture door, so the hinge carries both the appliance door and the cabinet front. The design is shared across several AEG, Electrolux, Küppersbusch, and Smeg built-in models, but mounting patterns and handedness vary between ranges, so confirm the model reference before ordering.
This hinge will only fit the models as shown or as specifically advised and will not fit any others. Please check your model number carefully against the compatibility list before ordering.
Important
Replace these hinges as a pair, not individually; if one has failed, the other will likely be worn and may have failed, though perhaps not obviously. Replacing only one can strain the new hinge, causing premature wear and failure.
Technical Notes
Specifications: Integrated fridge freezer door hinge. Product code: 2211202052. Supplied as a single hinge unit. Steel hinge mechanism with moulded mounting components. Direct replacement for the original factory-fitted hinge.
Safety note: Support the appliance door before the hinge is released — these doors are heavy and the hinge sits under load. Isolate the appliance from the mains before fitting and, where a furniture door is attached, have a second person steady it during removal and refitting.
AEG FRIDGE FREEZER
ABE810F6NF (922761012), AIK2853L (925512032), AIK2853R (925512031), S18E5T (925516108), SCB618F3LF (925512025), SCE618F3LF (925512028), SCE81826TC (925516125), SCE818E6TF (925516102), SKB810E1AF (923761024), SKE810E1AF (923761023), SKK810EDAF (923761025)
ELECTROLUX FRIDGE FREEZER
ENT7TE18R (925516114), LNT7TE18R (925516101)
KUPPERSBUSCH FRIDGE FREEZER
FK3800.1I (923761026), FKG8500.2I (925516107)
SMEG FRIDGE FREEZER
C8174DN2E (925516106)
Get Expert Fridge Freezer Spare Part Help
Can't find your model number listed or need help identifying the correct part? Contact our parts advisors with your full model and serial number, and we'll verify the correct part for your appliance.
| Further Description |
Common Faults & SymptomsThe following symptoms are commonly reported when an integrated fridge freezer hinge begins to fail. Use this as a diagnostic guide before ordering a replacement — if more than one of these is present, the hinge is the likely culprit. 1
Door Dropping or Sagging
A worn or cracked hinge loses its ability to hold the door square, so the door gradually drops at the outer edge and no longer sits level with the cabinet carcass.
2
Door Not Closing Flush
When the hinge no longer pulls the door in evenly, the appliance door and furniture door stand proud of the cabinet. The door may need a push to latch, or it springs open again immediately.
3
Poor Seal and Cold Air Loss
A hinge that has shifted the door out of alignment breaks the seal along one edge. Cold air escapes, the compressor runs longer, and the appliance uses noticeably more energy.
4
Condensation or Ice Around the Door Edge
Warm, moist room air drawn in through a misaligned door edge condenses on cold surfaces. Water pooling at the bottom of the cabinet or frost creeping along a seal line often points to hinge sag rather than a failed gasket.
5
Creaking, Clicking or Grinding
Noise on opening and closing usually comes from a dry, worn or deformed hinge pivot. A metallic click at the end of travel can also indicate a partially fractured hinge body.
6
Visible Cracks or Distortion at the Hinge
Inspect the hinge body and its mounting arms with the door open. Hairline cracks, stretched mounting holes or a hinge that has twisted out of shape mean the part is no longer carrying the door safely.
7
Door Catching on the Cabinet or Adjacent Units
As the door drops, its lower edge or the furniture front starts to foul the plinth, the carcass or neighbouring cabinets. This rubbing is a common early sign that the hinge has lost alignment.
8
Door Feels Heavy or Resists Opening
A hinge that has seized, corroded or lost its bearing surface makes the door feel stiff and reluctant to move, and it may not hold itself open at the intended angle.
Fitment GuidanceThis part is compatible only with the models listed in the compatibility matrix above. Even if a hinge looks visually identical, mounting patterns and handedness can differ between ranges.
Diagnostic TipsBefore concluding that the hinge has failed, carry out these checks to rule out other causes.
Installation GuideThese steps describe the general procedure. The exact sequence varies between models, so always consult the appliance service manual where available.
Before Ordering, Check These First
Disclaimer: The fault codes and symptoms listed above are intended as a general guide to assist with diagnosis. They cannot be taken as a definitive diagnosis of any particular problem, and other components may produce similar symptoms. Always confirm the fault with proper testing before ordering parts. |
|---|---|
| Alternate Part Number | 931332040, SMG931332040, DST2211202052, 2211202029, 094.004EL, Hettich 3362-5.1 (marked 3362 5.0 on some production), 4055504197 (kit) |
| EAN Number | 7321424476640 |
| Manufacturer | Genuine Lux1AE |
| Genuine Part | Yes |
Integrated
Door Hinges
Fridge and freezer door hinges wear over time, causing doors to rub, misalign, or even fall. Replacing worn hinges ensures safe and smooth operation.
About Integrated Door Hinges
Door hinges on integrated fridges and freezers are often Hettich or Ingol, although other brand-specific hinges exist. Top and bottom hinges are usually “opposite” of one another, swapping positions if the door is reversed.
We strongly recommend replacing both hinges at the same time. Many manufacturers now sell door hinges as a kit, as if one fails, the other is likely to follow soon after.
To identify Hettich hinges, check the number stamped on the plate fixing the outer wooden door (e.g., 3362 5.0). The hinge end may have a number (41.5 or 45). If it’s 45, contact us before ordering, as these can be model-specific.
