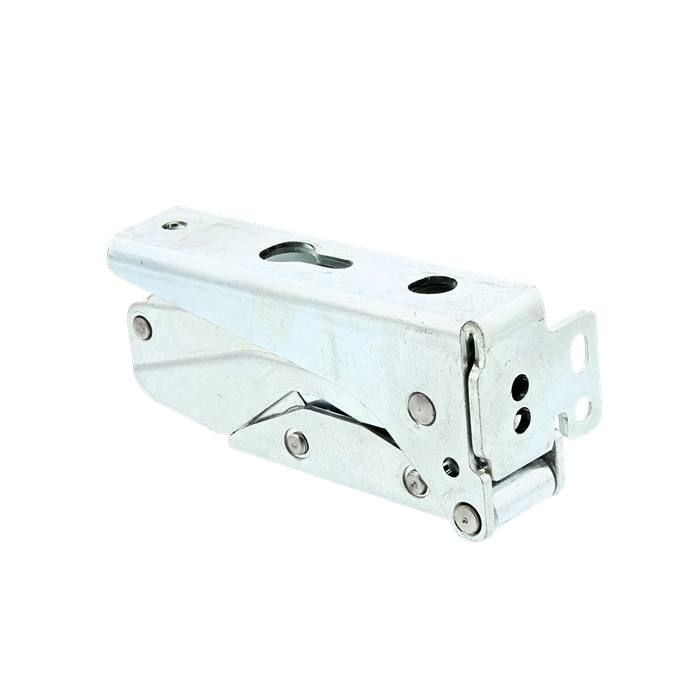

Fridge Freezer Hinge - (Lower Right / Upper Left)
Replacement fridge freezer hinge for the lower right and upper left door positions – compatible with AEG, Electrolux, Küppersbusch and Smeg appliances as shown unless advised otherwise
Description
Getting a built-in appliance door to hang true again depends on fitting the right hinge in the right position, and this genuine spare is the factory part for the lower-right and upper-left stations. It matches the hinge originally supplied with the appliance, so the mounting plate, pivot angle, and load rating match the door it was designed to carry—no drilling, no adaptation, no compromise on the door line.
These appliances use two hinges, one at each door station, and the two are handed differently. This listing covers the lower right and upper left hinge; the opposite station is supplied as a separate part. Because the furniture door hangs from the same fixing points, replacing a worn hinge with the correct handed part restores an even gap along the top, bottom, and hinge edge.
This part will only fit the models as shown or as specifically advised and will not fit any others. Please check your model number carefully against the compatibility list before ordering.
Important
Replace these hinges as a pair, not individually; if one has failed, the other will likely be worn and may have failed, though perhaps not obviously. Replacing only one can strain the new hinge, causing premature wear and failure.
Technical Notes
Specifications: Fridge freezer door hinge, opposite hand. Fits the lower-right and upper-left door positions. Product code: 2211201054. Supplied as a single hinge unit. Steel hinge mechanism with moulded mounting components. Direct replacement for the original factory-fitted hinge. Note: two hinges are used per appliance, and the opposite station is supplied separately.
Safety note: The hinge holds a loaded door under tension, so support the door on a prop or with a second pair of hands before releasing any fixings. Isolate the appliance from the mains first, and handle the furniture door carefully while it is detached.
AEG FRIDGE FREEZER
ABE810F6NF (922761012), AIK2853L (925512032), AIK2853R (925512031), S18E5T (925516108), SCB618F3LF (925512025), SCE618F3LF (925512028), SCE81826TC (925516125), SCE818E6TF (925516102), SKB810E1AF (923761024), SKE810E1AF (923761023), SKK810EDAF (923761025)
ELECTROLUX FRIDGE FREEZER
ENT7TE18R (925516114), LNT7TE18R (925516101)
KUPPERSBUSCH FRIDGE FREEZER
FK3800.1I (923761026), FKG8500.2I (925516107)
SMEG FRIDGE FREEZER
C8174DN2E (925516106)
Get Expert Fridge Freezer Spare Part Help
Can't find your model number listed or need help identifying the correct part? Contact our parts advisors with your full model and serial number, and we'll verify the correct part for your appliance.
| Further Description |
Common Faults & SymptomsThe symptoms below are the ones most often reported when a hinge at the lower right or upper left station has worn out. Treat this as a diagnostic guide — if several are present together, the hinge is the likely cause. 1
Uneven Gap Down the Hinge Edge
A widening or tapering gap between the door and the carcass along the hinge side is one of the earliest signs. The door is no longer being held square by the hinge at that station.
2
Door Corner Dropping at the Bottom
If the bottom corner on the hinge side hangs low, the lower right hinge has lost its grip on the door. The weight of the door gradually works a worn hinge further out of position.
3
Door Twisting as It Opens
When the two hinges are no longer working in step, the door twists slightly on its axis. This is felt as a judder or a slight twist in the hand as the door swings open.
4
Furniture Door Rubbing on the Plinth
On integrated models a sagging hinge shows up first on the cabinet front rather than the appliance door. If the furniture door scuffs the plinth or a neighbouring unit, check the hinge before adjusting the brackets.
5
Door Springs Back or Will Not Stay Open
A hinge that has lost its internal friction lets the door fall closed on its own, or refuses to hold at the open position. This makes loading and unloading awkward and points to a worn hinge mechanism.
6
Cold Air Leaking Along One Edge
A door pulled out of line at the hinge side compresses the gasket unevenly. One edge seals, the other does not, and the appliance runs longer to hold temperature.
7
Clunk or Snap at the End of Travel
A sharp noise as the door reaches fully open often comes from a partially fractured hinge arm or a pivot that has worn oval. Continued use in this state can crack the hinge completely.
8
Hinge Mounting Plate Lifting Away
With the door open, look at where the hinge meets the cabinet. A mounting plate that stands off the surface or a fixing hole that has opened up means the hinge can no longer be trusted to carry the door.
Fitment GuidanceThis part is compatible only with the models listed in the compatibility matrix above. Handed hinges look similar at a glance, so position matters as much as model number.
Diagnostic TipsBefore concluding that the hinge has failed, carry out these checks to rule out other causes.
Installation GuideThese steps describe the general procedure. The exact sequence varies between models, so always consult the appliance service manual where available.
Before Ordering, Check These First
Disclaimer: The fault codes and symptoms listed above are intended as a general guide to assist with diagnosis. They cannot be taken as a definitive diagnosis of any particular problem, and other components may produce similar symptoms. Always confirm the fault with proper testing before ordering parts. |
|---|---|
| Alternate Part Number | DST2211201054, 094.003EL, 2211201021, 931332041, SMG931332041, 4055504197 (kit), Hettich 3705 / 3363 |
| EAN Number | 7321424476633 |
| Manufacturer | Genuine Lux1AE |
| Genuine Part | Yes |
Integrated
Door Hinges
Fridge and freezer door hinges wear over time, causing doors to rub, misalign, or even fall. Replacing worn hinges ensures safe and smooth operation.
About Integrated Door Hinges
Door hinges on integrated fridges and freezers are often Hettich or Ingol, although other brand-specific hinges exist. Top and bottom hinges are usually “opposite” of one another, swapping positions if the door is reversed.
We strongly recommend replacing both hinges at the same time. Many manufacturers now sell door hinges as a kit, as if one fails, the other is likely to follow soon after.
To identify Hettich hinges, check the number stamped on the plate fixing the outer wooden door (e.g., 3362 5.0). The hinge end may have a number (41.5 or 45). If it’s 45, contact us before ordering, as these can be model-specific.
