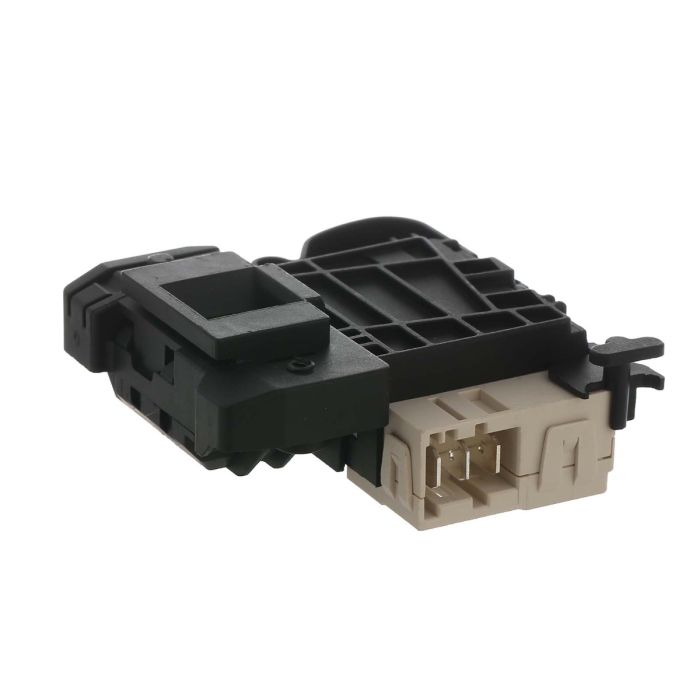

Washing Machine Door Lock
Replacement door lock and interlock switch – compatible with Amica, Bompani, Beko, Classique, Euromaid, Gorenje, Kenwood, LG, Midea, Omega, Samsung and Technika washing machines as shown unless advised otherwise
Description
The door lock and interlock switch is the safety device that keeps the washing machine door securely closed throughout every stage of the wash cycle.
It is a Metaflex ITW ZV-447 type door lock, a bi-metal interlock mechanism that both latches the door mechanically and completes the electrical circuit that tells the control board the door is safely shut. Until the lock engages and signals the board, the machine will not fill, tumble or spin, which is why a failed door lock so often presents as a machine that appears to be completely dead despite having power.
The lock also prevents the door from being opened while the drum is turning or the water level is above the safe threshold, and it includes a delay mechanism that keeps the door locked for a short period after the cycle ends to allow the drum to stop and any residual heat or water to settle.
Door locks fail in several recognisable ways. The most common is a lock that no longer latches, so the door springs open or feels loose when pushed shut, and the machine refuses to start. In other cases, the lock engages mechanically but the internal contacts no longer close, so the control board never receives the confirmation signal and the cycle will not begin. The bi-metal strip inside the lock can also fatigue, causing the lock to release too early, mid-cycle, or to remain locked after the programme has finished, trapping the laundry inside. A lock that is stuck closed may need to be forced open, which can damage the door handle or the lock itself.
Because the ZV-447 type lock is used across a wide range of brands and models, and because several visually similar locks exist with different terminal arrangements and pin configurations, confirm your full model number before ordering. This door lock fits many more models than are listed here, so if your model is not shown, please ask before ordering.
Technical Notes
Specifications: Metaflex ITW ZV-447 type door lock and interlock switch for front-loading washing machines. Rated 250 V AC, 16(6) A, with 3 spade terminals at 6.3 mm. The lock uses a bi-metal strip mechanism for the delayed release function and incorporates a mechanical latch that engages with the door striker. Marking on the component: ITW METALFLEX ZV-447 T85 4-5 16(6) A 250V~ μ10E3. The lock is supplied as a complete assembly with the mounting bracket as used by the original manufacturer. Product code: INT125.
Fitment guidance: This door lock is confirmed for the Amica, Bompani, Beko, Classique, Euromaid, Gorenje, Kenwood, LG, Midea, Omega, Samsung and Technika washing machine models listed below. It is also known to be used on a wide range of additional brands, including Albalux, Albatros, Altus, Arcelik, Arctic, Artica, Avant, Aya, Becken, Bellavita, Berklays, Blomberg, Bomann, Brandt, Bush, CDA, Candy, Caterwash, Cecotec, Comfee, Continental Edison, Cylinda, Daewoo, Davoline, Dawlance, DeLonghi, Easelectric, Electro Line, Elvita, Epoq, Everglades, Evvo, Evyo, Fagor, Fisher Paykel, Fortex, Friac, Frilec, Haier, Hansa, Hanseatic, Heider, Heinner, Hisense, Infiniton, Jeken, Koenic, Korting, Kroms, Leran, Liberton, Logik, Lord, Master Kitchen, Montpellier, Nevir, Nobeltek, Ocean, Osby, Philco, Point, Proline, Qilive, Rainford, Rommer, Saba, Samus, Sauber, Schneider, Selong, Sharp, Smeg, Smileader, Snaige, Starlight, Statesman, Strome, Surfline, Svan, Teka, Telefac, Tesla, Thomson, Toshiba, TCL, Valberg, Vedette, Veripart, Vestel, Vestfrost, Westpoint, Whitewash, Wisberg, Zanetti and Zerowatt. Because this lock fits many more models than are listed, always confirm your full model number with our team if your appliance is not shown. The model number is found on the rating plate, usually inside the door aperture, on the rear of the machine, or on the frame behind the door seal.
Diagnostic tip: Isolate the power before testing. With the door lock removed and the leads disconnected, examine the lock for signs of burning, arcing or a melted housing, which indicates the contacts have been overloaded. Test the lock mechanism by hand: the latch should move smoothly and return positively under spring tension. A lock that feels stiff, gritty or does not return freely is worn and should be replaced. If the lock appears mechanically sound but the machine will not start, check the wiring and terminals for looseness or corrosion before ordering. If the machine displays a door-related error code, this lock is the most likely cause on the models listed.
Installation guide: 1. Switch off and unplug the washing machine, or isolate the dedicated circuit at the consumer unit. 2. Turn off the water supply and, where possible, run a drain cycle to empty the drum. 3. Open the door and locate the door lock, which is usually mounted on the inner side of the door frame opposite the hinges. 4. Remove the retaining screws or clips that secure the lock, supporting it so it does not fall. 5. Pull the lock forward and disconnect the spade terminals, noting which wire goes to which terminal. 6. Remove the old lock and compare it with the new one to confirm the terminal positions and mounting points match. 7. Connect the leads to the new lock in the original positions and push the terminals fully home. 8. Fit the new lock into its mounting and secure it with the retaining screws or clips, checking that the latch aligns with the door striker. 9. Close the door and listen for the lock clicking as the latch engages. 10. Restore the power and water, run a short cycle and confirm the machine starts, completes the cycle and that the door releases correctly at the end.
Safety note: Always isolate the electrical supply before working on a washing machine, as mains voltage is present at the door lock terminals. Do not bypass or bridge the door lock, as this disables a critical safety interlock and allows the drum to spin with the door open. Residual water in the drum and pump can be hot, so allow the machine to cool before disconnecting anything. If the door striker or hinge is worn or misaligned, correct it at the same time, as a poorly aligned door will quickly damage a new lock.
AMICA WASHING MACHINE
Amica WA 1430 (1034571), Amica WA 1441 (1034571), Amica WA 1450 (1034571), Amica WA 14690 (1140295), Amica WA 14690 W (1140295)
BEKO WASHING MACHINE
BFL1010W, BFL103ADW, BFL7510W, BFL8510W, BFL853ADW, BK10141PRCNT, BK9121PR, BK9121PRMG, DNMC7SE450, DNMWCP81242, DNMWCP81442SI, DNMWCP81442STSI, EHTV7636XS, EWTV7716XSPT, EWTV7734XSDPT, EWTV8716XSPT, FTA5576, HTE7613YBST, HTE7616X0, HTE7736CSXCW, HTE7736XC0, HTE7746X0, HTE8613YBST, HTE8713YBST, HTV7742XW, HTV8712XW, HTV8732XAW, HTV8732XCW, MWTE9634XCW, MWTV6534XCW, MWTV7632XCM, PWTV7644CSX0, PWTV8644CSX0, PWTV8744XW, PWTV9744XW, PWTV9744XWA, TWFT8128WI, WDB7425R2A, WDB7425R2W, WDB7426R1B, WDW75141, WDW85141, WDW85142, WFL100MA, WFL100MA2, WFL80M, WFL80SP, WKY71033, WKY71233LSYB2, WKY71233PTLYB3, WMCF8744WB, WMP101441STI, WMP10744XA, WMP11744XW, WMP12744XST, WMP8744XD, WMY71283LMB2, WMY71435PTLE, WQP10747XSWD, WQY9736XSWBT, WRE6532ZWBW, WRE6632ZSBS, WRE6632ZWBW, WSRE10733PRWI, WTC6516W, WTE10734XDOS, WTE10736S0W, WTE10744M, WTE10744N, WTE10744X0WST, WTE10744XB0W, WTE10744XDOS, WTE10744XM, WTE10744XST, WTE10745H, WTE10745X0A, WTE10745X0D, WTE11744XB0W, WTL104121W, WTL104151W, WTV6632XBW, WTV6633B0, WTV6636CSX0, WTV7532XAW, WTV7632XBW, WTV7634XAW, WTV7634XS0, WTV7735XS0, WTV7736XS, WTV7736XW, WTV8616W, WTV8634CSXS0, WTV8634XAW, WTV8636XS, WTV8644CSXWADST, WTV8644XS, WTV8644XW, WTV8734XCM, WTV8734XCMST, WTV8735XS0, WTV8736S0W, WTV8736XBST, WTV8736XS, WTV8736XW, WTV8744CSXW0, WTV8744CSXWAD, WTV8744CSXWADST, WTV8744CSXWAT
BOMPANI WASHING MACHINE
Bompani BWG 1045 (M58174381004786), Bompani BWG 1050 (M58174381004786)
CLASSIQUE WASHING MACHINE
Classique CL7FLWD1 (17438100000455)
EUROMAID WASHING MACHINE
Euromaid WMFL10 (17438100000455)
GORENJE WASHING MACHINE
Gorenje W1214QA (00000045458), Gorenje W1D2A164ADS (00000045458), Gorenje W1D2A854ADPS (00000045458), Gorenje WDQY1014-LVW201/XQBJC00000742 (HK1984745), Gorenje WD10514S (HK1984745)
KENWOOD WASHING MACHINE
Kenwood L1214WMB25 (17438100004786)
LG WASHING MACHINE
LG CM20T5S2E (6601EN1003D), LG DD127MDWB (6601EN1003D), LG DD147FDN (6601EN1003D), LG DD147MWB (6601EN1003D), LG DD147MWN (6601EN1003D), LG DD148MWB (6601EN1003D), LG DD1400 (6601ER1005A), LG DD147MWM (6601ER1005A), LG DD168MWN (6601ER1005A), LG F1022TD (6601ER1005A), LG F1256LD (6601ER1005A)
MIDEA WASHING MACHINE
Midea MFE60-Z1401 (17438100004786), Midea W60 (17438100004786), Midea DMFLW70 (17438100000455), Midea LSA082 (17438100000455), Midea LSA102 (17438100000455), Midea LSA122 (17438100000455), Midea LSC082 (17438100000455), Midea LSC102 (17438100000455), Midea LSC122 (17438100000455), Midea LSD10B2 (17438100000455), Midea LSD10X2 (17438100000455), Midea LSD11B2 (17438100000455)
OMEGA WASHING MACHINE
Omega OWD735W (17438100000455), Omega OWM9W (17438100000455), Omega OWM75W (17438100000455)
SAMSUNG WASHING MACHINE
Samsung WW60A3100BE/LP (DC81-01800A), Samsung WW60A3100BE/UA (DC81-01800A), Samsung WW60A3120BE/EO (DC81-01800A), Samsung WW60A3120BE (DC81-01800A), Samsung WW60A3120BE/LE (DC81-01800A), Samsung WW60A3120BH/EO (DC81-01800A), Samsung WW60A3120BH (DC81-01800A), Samsung WW60A3120BH/LE (DC81-01800A), Samsung WW60A3120WE/EO (DC81-01800A), Samsung WW60A3120WE (DC81-01800A), Samsung WW60A3120WE/ET (DC81-01800A), Samsung WW60A3120WE/LE (DC81-01800A), Samsung WW60A3120WH/EO (DC81-01800A), Samsung WW60A3120WH (DC81-01800A), Samsung WW60J32G0PWD/UA (DC81-01800A), Samsung WW70T3020BW/UA (DC81-01800A)
TECHNIKA WASHING MACHINE
Technika T75E1200FL-5 (17438100000455)
Get Expert Washing Machine Spare Part Help
Can't find your model number listed or need help identifying the correct part? Contact our parts advisors with your full model and serial number, and we'll verify the correct part for your appliance.
| Further Description |
Common Faults & SymptomsThe following fault codes and symptoms are commonly reported when this part begins to fail. Use this as a diagnostic guide before ordering a replacement — if more than one of these is present, the part is the likely culprit. 1
E10 (Beko) — Door Lock Jam Or Sensor Issue
On Beko models, E10 indicates that the machine cannot detect the door is securely closed. The door may feel shut but the lock is not engaging or the internal contacts are not closing. This is usually caused by the door lock itself, though a water inlet, drainage or motor control board fault can produce the same code. Test the lock before checking other components.
2
E9 (Beko) — Door Lock Failure
E9 is displayed when the machine cannot detect that the door is closed, latched and locked properly. The cycle will not start. This is usually caused by a faulty door lock mechanism, a poor connection in the door circuit, or a failed control board. Check the lock terminals and wiring before condemning the board.
3
E30 (Amica) — Door Does Not Lock When Closed
On Amica models, E30 means the washing machine door does not lock when closed. The cycle will not start and the machine may beep. First check that no laundry is trapped in the door seal preventing it from closing fully. If the door closes properly but E30 persists, the lock or its wiring is at fault.
4
U4 (Amica) — Door Lock Failure
U4 on Amica models indicates a door lock failure. The machine has detected that the lock is not operating correctly, either failing to lock when the door is closed or failing to release at the end of the cycle. This is a direct indication that the door lock requires testing and most likely replacement.
5
dE / dE1 / dE2 (LG) — Door Not Closing Or Locking
LG models display dE when the door is not closed completely, dE1 when the door is not closed properly, and dE2 when the door is closed but the lock mechanism is not operating correctly. The machine will not start. Check for laundry trapped in the door seal and ensure the door is pushed fully shut. If the codes persist, the door lock is the likely cause.
6
dC / dC1 (Samsung) — Door Open Or Lock Failure
Samsung models display dC when the door is detected as open, and dC1 when the door cannot be locked. The machine will not start or will stop mid-cycle. Ensure the door is closed firmly and that nothing is trapped in the seal. If the codes persist after checking the door alignment, the door lock is likely to have failed.
7
E:02 (Gorenje) — Door Lock Error
On Gorenje models, E:02 indicates a door lock error. The display prompts you to make sure the washing machine door is closed. If the door is closed but the error persists after resetting the machine, the door lock is faulty. The code can also appear if the door cannot be locked even though it is closed.
8
The Door Feels Loose Or Swings Open
The door does not stay securely closed — it feels loose or swings open from a closed position. This is a clear sign that the locking mechanism has failed. The machine will not start, or if it does start, water may leak from the door during the wash. The door lock should be replaced.
9
The Door Will Not Open After The Cycle Ends
The cycle finishes but the door remains locked and cannot be opened. The bi-metal strip inside the lock that controls the delayed release has failed, leaving the lock engaged. Do not force the door open, as this can damage the handle and lock. The door lock should be replaced.
10
The Machine Appears Dead With No Response
Nothing happens when the start button is pressed — no display, no drum movement, no sound. If the machine has power at the socket and the door lock is the only interlock in the circuit, a failed lock will prevent the control board from energising any part of the machine. Test the lock before assuming the control board or timer has failed.
Before Ordering, Check These First
Disclaimer: The fault codes and symptoms listed above are intended as a general guide to assist with diagnosis. They cannot be taken as a definitive diagnosis of any particular problem, and other components may produce similar symptoms. Always confirm the fault with proper testing before ordering parts. |
|---|---|
| Alternate Part Number | ZV-447, 317 93 003B, 317 93 003D, 317 93 003BD, 1045170, 0024000128A, 0024000128E, EMZ 898, 1034571, 17438100004786, 17438100000455, DC81-01800A, EBZ64753919, QUAINT125, 5055005235266, 5045383105138, |
| Manufacturer | Low Cost Spare Parts |
| Genuine Part | Alternative |
Washing Machine
Door Locks & Interlocks
The door lock ensures your washing machine or washer dryer cannot start unless the door is properly closed. Faulty locks can trigger F1, E1, or Error 1 codes.
About Washing Machine Door Locks
Also called interlocks or safety locks, these devices prevent the washing machine from starting with the door open. Many are bi-metallic and include a short delay before releasing the door after a cycle.
Over time, manufacturers may update the locks. Replacement parts may look different from the original but will function identically. Always check the model, serial, or product codes when ordering.
Need Help Finding Door Locks?
Contact us with your washing machine model, serial number, or a photo of the lock. We can identify the correct door lock or safety interlock and offer compatible, low-cost options.
Contact Support Team
Cost-Effective Spare Parts
Save Money On
Spare Parts.
Cost-compatible spare parts are not generic “one-size-fits-all” items. They fall into several categories, and care must be taken to ensure the replacement is fully appropriate for your appliance.
How Compatible Parts Work
Most cost-compatible parts are the same components originally used by the manufacturer but sourced from a different supplier. Often, the brand on your appliance did not manufacture every part themselves. Clever sourcing allows us to provide the exact same part — at a lower cost — sometimes even using a different manufacturer’s part number.
Choosing The Right Replacement
Some compatible parts are excellent, offering the same performance as the original. Others are very cheap but may fail quickly. We evaluate parts before listing and provide guidance so you can avoid low-quality replacements.
Obsolete or Universal Parts
Some original parts are no longer available, so compatible alternatives are the only option. Universal parts may also be used. We only list replacements we trust to ensure quality and fit, protecting you from poor-performing components.
Get Expert Guidance
Contact our technical team for advice on compatible spare parts. We’ll help you select the correct replacement, saving you money while avoiding mistakes and delays.
Contact Support TeamCost-Compatible Parts • Quality Verified • Established 1988
