Compatible Mains Interference Filter

£8.95

SKU

D068001

Alternative Part

Typically with you in 1 to 7 days

Qty

Commonly used on these brands

Compatible Spare Part

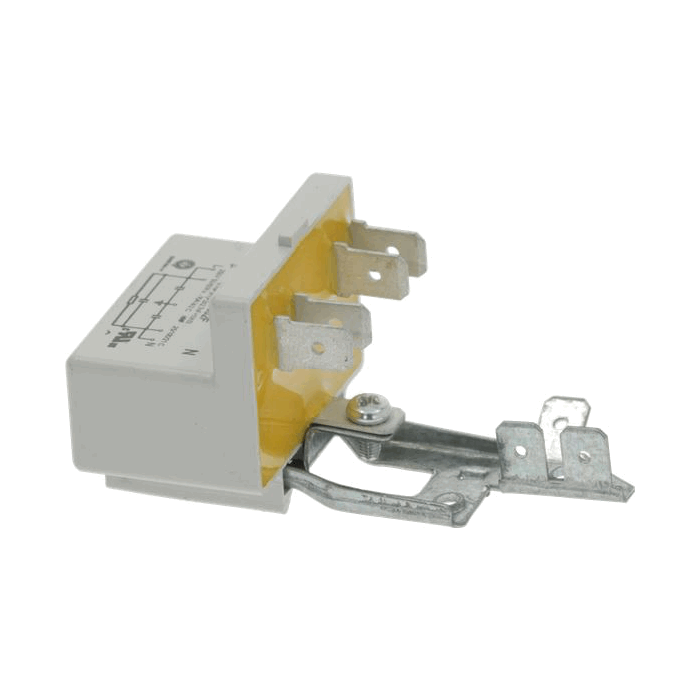

Replacement mains interference filter – compatible with Hoover, Candy, Kelvinator, Otsein, Rosieres and Zerowatt tumble dryers, dishwashers and washing machines as shown unless advised otherwise

Check your appliance model number to ensure a guaranteed fit.

Details

Description

Although not a truly generic spare part, this mains filter fits so many tumble dryer, dishwasher, and washing machine models that it can be regarded as such.

The filter sits between the incoming mains supply and the appliance's internal wiring, and it prevents electrical noise generated by motors, heaters, and other components from travelling back up the power cable and disturbing other equipment in the home. The most common source of this noise is the electrical arcing that occurs between motor brushes and the commutator as the motor turns under load. Without an effective filter, that noise can radiate through the mains wiring and affect radios, televisions, broadband routers and other sensitive electronics. Design has been altered several times on this part, but all versions are fully interchangeable, even though they may look quite different.

Mains interference filters can fail in several ways. The most common is a breakdown of the internal capacitor or suppressor components, which often produces a sharp burning smell and visible scorching or cracking of the filter body. In more serious cases, the filter can fail in a way that leaves dangerous voltage present on the metal casing of an unearthed appliance, creating a genuine electric shock risk. A failing filter may also cause the appliance to trip the household RCD or blow the plug fuse, particularly when the machine is first plugged in or when the motor starts. Because the filter is a sealed component, internal failure is not always visible from the outside, and diagnosis usually involves checking for continuity and insulation resistance rather than a visual inspection alone. This mains interference filter will only fit the models shown or as specifically advised, and will not fit any others—even if it looks the same, it probably won't, as several look alike but are not. Take time to ensure this is correct before ordering, and ask for assistance if you are unsure.

Technical Notes

Specifications: Type: mains interference filter / radio interference suppressor. Voltage rating: 250V AC. Frequency: 50–60Hz. Capacitance: 0.1µF + 2 x 22pF. Resistance: 2.2MΩ. Connection: spade terminals. Mounting: panel or chassis mount with screw fixings. Weight: approximately 0.05kg. Product code: D068001.

Fitment guidance: This mains interference filter is known to fit only the Hoover, Candy, Kelvinator, Otsein, Rosieres and Zerowatt models listed below. The model number is normally found on the rating plate inside the door aperture, on the rear casing, or behind the lower service flap. Because several mains filters look almost identical while differing in electrical ratings and terminal layout, always confirm the model number against the compatibility list rather than relying on appearance alone.

Diagnostic tip: Before ordering, isolate the appliance from the mains and remove the top lid or rear panel to access the filter. Inspect the filter body for signs of bulging, scorching, cracking or a burning smell — these are the most obvious signs of failure. Test the filter with a multimeter set to resistance: the input and output terminals of each line should show continuity, while there should be no continuity between the live or neutral terminals and earth. A very low or zero reading between live/neutral and earth indicates a breakdown and confirms the filter needs replacing. Also check that the machine is correctly earthed and that the plug and socket are in good condition before concluding the filter is at fault. If the machine trips the RCD before any cycle starts, the filter is a strong candidate.

Installation guide: 1. Isolate the appliance from the electrical supply at the wall and unplug it. 2. Remove the top lid and rear panel to access the mains filter. 3. Note the position and orientation of all connections, then photograph or label the wiring. 4. Disconnect the spade terminals from the filter, taking care not to pull on the wires. 5. Remove the screws securing the filter to its mounting bracket and lift it out. 6. Fit the new filter in position and secure it with the original screws. 7. Reconnect the terminals to the correct tags, checking against your notes. 8. Refit the panels and lid. 9. Plug the machine back in, restore the power and run a short cycle to confirm correct operation and check that the RCD does not trip.

Safety note: This component operates at mains voltage and can retain a charge even after the appliance is disconnected. Always isolate the supply at the wall before working on the filter, and never work with wet hands. If the machine has been tripping the RCD or showing voltage on the casing, treat it as a serious electrical fault and do not use the appliance until the filter has been replaced and the machine re-tested. Do not bypass or remove the filter — it is a safety component as well as an interference suppressor.

CANDY DISHWASHER

A9004, A9007SMART, A9010SMART, ABI30V, ABI31VB, CC217-80, CC217-88, CC217-SY, CC266-S, CC266T-47, CC267-37, CC267-80, CC267T-01S, CC267T-47, CC267T-84, CC267T-88, CC276T-47, CC277T-86S, CD112 01, CD112 41S, CD112 80, CD112 85S, CD112 86S, CD1120 40S, CD1120/1, CD1120CORTE, CD112S 80, CD122 01, CD122 39S, CD122 80, CD122J 80, CD123L 01S, CD132 37, CD212A 40S, CD222AS, CD242, CD242UK, CD243AFR, CD245AFR, CD255FR, CD257, CD260SCHIARA, CD262, CD262X, CD263AFR, CD263AXFR, CD265AFR, CD265AXFR, CD312 80, CD351S, CD352, CD353S, CD353SITA, CD355 47, CD372, CD372/1, CD373, CD373SK, CD374SK, CD383FR, CD384A, CD384AX, CD451TNORD, CD455 47, CD455L 47, CD472, CD474S, CD474SB, CD474SITA, CD474SR, CD474SX, CD474SXITA, CD474SY, CD474UK, CD474XUK, CD475S, CD475SX, CD476BLU, CD483AC, CD484AFR, CD489DAC, CD490SCHIARA, CD500, CD501IT, CD570D, CD571/1E, CD571E, CD571S, CD572ES, CD585HS, CD585HSITA, CD587HS, CD600, CD601A/1, CD601IT, CD602S, CD602SX, CD6100, CD622UK, CD622XUK, CD623UK, CD623XUK, CD650UK, CD651S, CD6720-ISR, CD675S, CD675SX, CD687S, CD700ES, CD700IT, CD700SY, CD701BIT, CD701IT, CD701NIT, CD701XIT, CD701YIT, CD702T, CD710M, CD711/1ES, CD711/1XES, CD711S/1, CD711SX/1IT, CD797SMART, CD797SMARTAC, CD797SMARTSY, CD797SMARTUK, CD797SMARTX, CD798SMART, CD800/1ES, CD801TX, CD834UK, CD934UK, CD950UK, CDC165-83SY, CDC168-SY, CDC179X-88, CDC263, CDC263CH, CDC266UK, CDC266X, CDC266XCH, CDC267ESY, CDC268EX, CDC268TEX, CDC268TEXCH, CDC668-37, CDC668-47, CDC668-SY, CDC679X-SY, CDC679XT-88, CDC768-47, CDC779X-86SY, CDC779XT-88, CDC779XT-SY, CDE107-80, CDE700AFR, CDE701A, CDE701TNOR, CDE701TXNORD, CDE705AFR, CDF312 47, CDF312 80, CDF312A 85S, CDF312AX 41S, CDF312P 01, CDF312P 37, CDF312T 86S, CDF312X 47, CDF3153/1, CDF3154/1X, CDF3154XIDE, CDF315A 39S, CDF315P 01, CDF322 37S, CDF322 80, CDF322/1 80, CDF322A, CDF322AX 37S, CDF322T 86S, CDF325A 39, CDF325P 01, CDF512 47, CDF512X 47, CDF513 47, CDF513X 47, CDF6150/1 37, CDF6150CORTE, CDF6151/1, CDF6152/1, CDF6152MAST, CDF615A 01, CDF615A 37, CDF615A 39S, CDF615A 85S, CDF615AN 01, CDF615AX 01, CDF615AX 84S, CDF615AX/1S, CDF615T 86S, CDF615TX 86S, CDF622 47, CDF622 80, CDF622/1X 80, CDF622X 47, CDF622X 80, CDF622X 86S, CDF624L, CDF625 47, CDF625A 01, CDF625A S, CDF625AX 01, CDF625N 01, CDF625T 86S, CDF625TX 86S, CDF632 47, CDF632X 47, CDF635 47, CDF722 47, CDI1010, CDI1012 02, CDI1012 80, CDI1012 S, CDI1012/1, CDI1012/1 80, CDI1612, CDI2012, CDI2012 80, CDI2015 02, CDI2015S, CDI2212, CDI2515, CDI3015 02, CDI3015 S, CDI3515, CDI3515 02, CDS120ALU 47, CDS120N 02S, CDS120W 02S, CDS120X 02S, CDS120X 80, CDS150N 84S, CDS150W 84S, CDS150X 02S, CDS155X, CDS220N, CDS220W, CDS220X, CDS350NDUEDI, CDS350WDUEDI, CDS350XDUEDI, CDS355N, CDS355W, CDS355X, CDS450X, CDV160-SY, CDV262, CDV262-04ARG, CDV262ES, CDV262UK, CDW144/1, CDW252/1, CDW254/1 UK, CDW254E/1, CDW254SNX/1, CDW254SXXTG, CDW258E, CDW263MIRO, CDW274SNX, CDW35/1, CDW36/1, CDW362E, CDW36E, CDW374, CDW374/1, CDW374/1ES, CDW376/1, CDW378, CDW478, CDW478/1, CDW479/1E, CDW479E, CDW480/1E, CDW480E, CDW484/1, CDW485/1, CDW578, CDW583MIRO, CDW586/1S, CDW588E, CFD3153SE 37, CFD6151MIRO, CI7100N, CI7100NITA, CI7100W, CI7100X, CI7300N, CI7300W, CI7300X, CI7300XOS, CI7850N, CI7850W, CI7850X, CI7950BA, CI7950BD, CI7950GH, CI7950X, CIC209TX, CIC209X, CIC209XCH, CIC258E, CIC259EX, CIC259TEX, CIC259TEXCH, CIC60, CIV100 ARG, CIV100 EU, CIV100 UK, CIV100ES, CIV100OS, CIV109, CIV109OS, CIV130X EU, CIV139X, CIV140EXES, CIV140EXEU, CIV145E, CIV149EX, CIV14M, CIV60, CIVD14EX, CV116-80, CV116-SY, CV117-04S, CV117-OS, CV166-37/0, CV166-47/0

CANDY TUMBLE DRYER

A5001/1, A5001/1AUS, A5001/1ITA, A8001/1, A8001/1ITA, A8001/1UK, A9004, A9007SMART, CD112 80, CD242, CD242UK, CD257, CD260SCHIARA, CD262, CD262X, CD312 80, CD351S, CD352, CD353S, CD353SITA, CD373, CD373SK, CD472, CD474S, CD474SB, CD474SITA, CD474SR, CD474SX, CD474SXITA, CD474SY, CD474UK, CD474XUK, CD475S, CD475SX, CD483AC, CD489DAC, CD490SCHIARA, CD571S, CD585HS, CD585HSITA, CD587HS, CD622UK, CD622XUK, CD623UK, CD623XUK, CD650UK, CD687S, CD797SMART, CD797SMARTAC, CD797SMARTSY, CD797SMARTUK, CD797SMARTX, CD798SMART, CD834UK, CD934UK, CD950UK, CDC266UK, CDF312 80, CDV262UK, CDW144/1, CDW252/1, CDW254/1 UK, CDW254E/1, CDW254SNX/1, CDW254SXXTG, CDW258E, CDW35/1, CDW36/1, CDW36E, CDW374/1, CDW376/1, CDW378, CDW484/1, CDW485/1, CDW586/1S, CI7100N, CI7100NITA, CI7100W, CI7100X, CI7300N, CI7300W, CI7300X, CI7850N, CI7850W, CI7850X, CI7950BA, CI7950BD, CI7950GH, CI7950X, CIC60, CIV100 ARG, CIV100 EU, CIV100 UK, CIV100ES, CIV100OS, CIV130X EU, CIV140EXES, CIV140EXEU, CIV60, DFI50UK, DFI85SUK, DSI710NUK, DSI710WUK, DSI710XUK, DWI160M/1, DWI160W/1, ECO TEMPO, ZW2V

HOOVER DISHWASHER

D73ASY, D73SY, D7610/2 001, D812/1 071, D814/1 011, D816/1 031, D820/1 001, D821 001, D822/1 071, D824/1 011, D830/1 001, D832/1 071, D834/1 011, D834K, D836/1 031, DAA835K, DAA977K, DE823, DF967TNORD, DF997AALU, DFI100TIT, DFI105T, DFI50, DFI50IT, DFI50UK, DFI80SIT, DFI85S, DFI85SUK, DFI90TIT, DFI95T, DFIPLAN, DH833ASY, DH836TNORD, DH836TSY, DS732, DSI101IT, DSI700X, DSI710ALU, DSI710N, DSI710NUK, DSI710W, DSI710WUK, DSI710X, DSI710XUK, DSI730N, DSI730W, DSI730X, DSI775N, DSI775W, DSI775X, DSI785N, DSI785X, DSI795GH, DSI795XF, DSI9005N, DSI9005X, DSI9006N, DSI9006X, DT999AFR, DT999SYAL, DT999TSY, DWI160M/1, DWI160W/1, ECO TEMPO, ECOTEMPO/1, GSH5230TXWW, GSH5230ZXWW, GSH6230ZXWW, GSH7200WEBB, GSH7200WESS, GSH9200WESS, HC75XT-47, HD312 80, HD72M, HD73MALU, HD73MUK, HD83M, HD95M, HD96M, HD96MALU, HD97E, HD98E, HDC60ECH, HDC60ESY, HDC6UK, HDC70XSY, HDC75TEXCH, HDC75TEXDE, HDC75TEXFR, HDC75TEXSY, HDC7FME, HDC7FMUK, HDC7UK, HDI1530 30S, HDV60SY, HDV6UK, HDV70XSY, HDV7FMUK, HFI3015 80, HNC160-80, HNC170-80, HNC170S-80, HNC171X-SY, HNC172-80, HNC172S-80, HNC175-80, HNC175S-80, HNC180-80, HNC180S-80, HNC180-SY, HNC260-SY, HNC270-80, HNC271X, HNC271XS-SY, HNC360B-88, HNC360S, HNC375T-30S, HNC375T-80, HNC375T-84, HNC375T-88, HNC380-80, HNC382T-80, HNC480-SY, HNC485T-86, HNC770T-80, HNC771X-SY, HNC771XT, HNC771XT-84, HNC771XT-SY, HNC775T-80, HND310A, HND312 86S, HND312A 84, HND315 80, HND315A 85, HND315A 85S, HND315AX 37S, HND315SILVER, HND3212 30S, HND3212 80, HND325 80, HND325/1 80, HND325S/1 80, HND325SILV, HND3515A 85S, HND3515AX 37, HND515 86, HND615 80, HND6155 83, HND615A 85S, HND615S 80, HND615T 86S, HND625 80, HND625/1 80, HND625J/1 80, HND625T 86S, HND6515, HND6515A 85S, HND6515AL, HND715 80, HNV160-80, HNV160-SY, HNV171X-ISR, HNV171X-SY, HNV172-80, HNV375-80, HNV375-80/0, HNV375-S, HNV375-S/0, HNV380-80, HOD7715, HOD7AL, HOD7S, HSC170-80, HSV170-80, IDC60-88, IDC60-SY, IDF80, IDI1010, IDI12 02, IDS110N, IDS110W, IDS110X, IDS20N, ITD54V, ITD55CX, KD74/1 50HZ, KD74/1F, KD74/1G 115V, KD85/1, KD86, KD96 04S, KDV60-SY, KIT HNC171SY, KIT HNV171X, KITCD115, KT6EMAX, KV40F220, KV40H127

HOOVER TUMBLE DRYER

D7610/2 001, D812/1 071, D814/1 011, D816/1 031, D820/1 001, D821 001, D822/1 071, D824/1 011, D830/1 001, D832/1 071, D834/1 011, D834K, D836/1 031, DE823, DS732, HD72M, HD73MALU, HD73MUK, HD83M, HD95M, HD96M, HD96MALU, HD97E, HD98E, HDC6UK, HDC7FME, HDC7FMUK, HDC7UK, HDV6UK, HDV7FMUK, HND315 80, HND315SILVER, HND615 80, HND615S 80, HND715 80, TC50 001, TCE60 021, TCE60 031, TCE61 061, TCE62 011, TCE660 001, TV20 001, TV30 001, TV360 001, TVE40 001, TVE40 021, TVE40 031, TVE41 061, TVE42 011 EU, TVE42 011MAY, TVX30 031, TVX31 061, TVX32 011, TVX32 014.

KELVINATOR TUMBLE DRYER

KD74/1 50hz, KD74/1F, KD74/1G 115V, KD85/1, KV40F220, KV40H127

OTSEIN TUMBLE DRYER

LVC205, LVC225, LVD21/1, LVE2501/1, LVO2401/1, LVO3651, LVO3851/1, LVO385ALU, LVO3951, LVO4851/1, LVO4951, LVO522, LVO526, LVO591E, SD210, SE88B, SE99E

ROSIERES DISHWASHER

LSI47, LSI48N, LSI50N, LSI51/1, LSI51BI, LSI57, LSI67, LSI77, LSI87, LV139RB/1, LV205RB/1, LVC205, LVC205H, LVC225, LVC225H, LVC255H, LVC265H, LVD21/1, LVD216H, LVD21H, LVE2501/1, LVI239PN/1, LVI239RB/1, LVI255IN/1, LVI256RIN, LVI256RU/1, LVI256RUB/1, LVI256RUBM/1, LVI256RUV/1, LVI423PN/1, LVI423RB/1, LVI551, LVI633IN/1, LVI633RB/1, LVI977E, LVO2401/1, LVO3651, LVO3851/1, LVO385ALU, LVO3951, LVO4851/1, LVO4951, LVO522, LVO526, LVO526H, LVO591E, LVOH199A, LVOH2401, LVOH2575, LVOH299A, LVOH3651, LVOH3951, LVOH3951AL, LVOH399A, LVOH4951, LVOH499A/1, NHC771XT-89, OHD ONE, OHDC7X, OHDV6, OHDV70, OHDV7X, OHNC171X-37, OHNC173-37, OHNC271XS-37, OHNC272X-37, OHNC475TS-37, OHNC485T-37, OHNC771X-37, OHNC775XT-37, OHND312 37, OHND315P 37, OHND322 37, OHND6155E37, OHND615A 37, OHND615AX37, OHNV171X-37, OHNV175-37, OHNV375-37, PDF15 80, PDF15SILVER, PDF25 80, PFC170-80, PFV170-80, PPC160-80, PPC160J-80, PPV160-80, R6241HPB, R6241HPN, RC225, RLI60PN, RLI60RB, RLI70AV, RLI70BAV, RLI70BMV, RLI70VV, RM621, RSE65, RSI268B, RSI268IN, RSI268N, RSI522PN, RSI522RB, RSI580IN 04, RSI580PN 47, RSI580RB 47, RSI622/1RU, RSI622/1RUBM, RSI622/1RURB, RSI622/1RUV, RSI622RIN, RSI622RU, RSI622RUB, RSI622RUBM, RSI622RUV, RSI680AV 47, RSI680BAV 47, RSI680BMV 47, RSI680RU 47, RSI680RUBM, RSI680RURB, RSI680RUV, RSI680VV 47, RSIC269IN, RSIC269PN, RSIC269RB, RSIC522/1PN, RSIC522/1RB, RSIC522PN, RSIC522RB, RSIC777IN, RSIC777PN, RSIC777RB, RSIC780IN, SCH630E, SCH653X, SD210, SE88B, SE99E, SL845, SVC635E, SVD610EH, SVH633X, SVH643E, TC50 001, TC650 001, TCE60 021, TCE60 031, TCE61 031, TCE61 061, TCE62 011, TCE62 061, TCE63 011, TCE63 021, TCE64 001, TCE660 001, TCX51 031, TCX52 061, TCX53 011, TV20 001, TV30 001, TV630 001, TV640 001, TVE40 001, TVE40 021, TVE40 031, TVE41 031, TVE41 061, TVE42 011 EU, TVE42 011MAY, TVE42 061, TVE43 011, TVE43 014, TVX30 031, TVX31 031, TVX31 061, TVX32 011, TVX32 014, TVX33 011, TVX33 014, VW5217, WTK100EL, ZC216, ZH2V, ZH3C, ZH3EC, ZH850IT, ZH852SE, ZH862SE, ZH862SEA, ZH862SEN, ZH882SE, ZH882SEA, ZL821/1, ZL825/1ECO, ZL831/1ECO, ZL832, ZL835ECO/1, ZL835NNECO/1, ZL835NXECO/1, ZL835SILVER, ZL845ECO/1, ZLH845, ZW2V

ROSIERES TUMBLE DRYER

LV139RB/1, LV205RB/1, LVI239PN/1, LVI239RB/1, LVI255IN/1, LVI256RIN, LVI256RU/1, LVI256RUB/1, LVI256RUBM/1, LVI256RUV/1, LVI423PN/1, LVI423RB/1, LVI633IN/1, LVI633RB/1, RSE65

SMEG DISHWASHER

450CDW, 600CDW, 653ELCN, ADP8242, ADP8252, AP410, AP612CA, APA113, APA6148N, APA6148X, APK450, APKE450, APL12, APL12-1, APL1250ES, APL1259ES, BI2608W, BLV1AZ, BLV1AZ-1, BLV1NE, BLV1NE-1, BLV1O, BLV1O-1, BLV1P, BLV1P-1, BLV1R, BLV1R-1, BLV1RO, BLV1RO-1, BLV1VE, BLV1VE-1, BLV1X, BLV1X-1, BLV495, BLV495-1, BLV496ES, BLV515, BLV532, BLV535, BLV552, CA01-1, CA01-2, CA01-3, CA01-4, CA01-5, CA01S, CA12B, CA12S, CL6S-2, CL6S-3, CL6S-4, CL6W-2, CL6W-3, CW448, D452I, D4B, D4SS, D4W, DD410S, DD410W, DD410W1, DD612S, DD612S7, DD612SC, DD612SCA, DD612SCA7, DD612WC, DF1255W, DF41, DF410B, DF410BA, DF410BL, DF410BL1, DF410S, DF410S1, DF410SDX, DF410SDX7, DF410SF, DF410SF7, DF410W, DF410W1, DF41-7, DF4SS, DF61, DF612B, DF612BL, DF612FAS, DF612S, DF612SDX, DF612SDX7, DF612SE, DF612SI, DF612W, DF612WD, DF612WE, DF614BE, DF614FAS, DF614FAS7, DF614S, DF614SF, DF614WE, DF61-7, DF67, DF6FABAZ, DF6FABNE, DF6FABO, DF6FABP, DF6FABR, DF6FABRO, DF6FABVE, DF6FABX, DF6SPLUS, DFC410BK, DFC612BK, DFC612S, DI4, DI409C, DI409CA, DI41, DI410C, DI41-7, DI4510, DI452, DI453, DI4SS, DI607, DI607C, DI61, DI612, DI612A, DI612A1, DI612C, DI612CA, DI612CA1, DI612DA, DI612M, DI612SD, DI614, DI614H, DI61-7, DI6FABNE, DI6FABP, DI6FABR, DI6FABRO, DI912, DW2003WH, DW2003X, DW2003X-1, DW2005WH, DW2005X, DW2005X-1, DW2006W, DW2006X, DW2006X7, DW9S, DW9W, DWAFI75, DWB45FI, DWD1SSE-1, DWD409SS, DWD409WH, DWD612CSS, DWD612CWH, DWD612SS, DWF1-2, DWF409BL, DWF409SS, DWF409WH, DWF410SS, DWF410WH, DWF612BL, DWF612SS, DWF612WH, DWF614SS, DWF614WH, DWI409C, DWI410, DWI450, DWI600, DWI612, DWI612C, DWI614, EL961X, ELV431, ELV451I, ELV471, ELV472B, ELVI451F, ELVI461B, ELVI461I, ELVI461N, FN52B, GS45-3VI, GS62-2CN, GSB4080E, GSI4210, GSI6210, GSI6310XL, GSV4050E, GSV4220, GSV6050E, GSV6110, GSV6220, GSV6320XL, IG60521B2, JLDWS907, KAB45-1, KLS01-2, KLS02IL, KLS1256B, KLS1256S, KLS51B, KLS51S, KLSAX52-1, KLSB30-1, KLSN31-1, KLSX33-1, KLVS30EB, KLVS32X, KLVS50EB, KLVS51NE, KLVS52X, KM45FI, KM45SI, KM60FI, KM60SI, KS45-2, KS45-3T, KS60-2, KS60-3T, LLI6057, LS12B, LS12N, LS12X, LS19-2, LS19-3, LS19-7, LS40C-1, LS40C-2, LS4647XH7, LS6002X-1, LS6147XH7, LS645XSA, LSA1257BE, LSA1257LB, LSA12XPQ, LSA14X, LSA14X7, LSA447B, LSA447X, LSA449B, LSA449X, LSA451B, LSA453B, LSA4547B, LSA4547X, LSA4548XD, LSA4549B, LSA4549G, LSA4549X, LSA4551B, LSA4551G, LSA4552B, LSA4645B, LSA4645X, LSA4645X7, LSA4647G, LSA4647X, LSA4647X7, LSA4647XH, LSA4649B, LSA4650B, LSA4745B, LSA4745X, LSA4845B, LSA4845G, LSA4845X, LSA6045X, LSA6047B, LSA6047G, LSA6047X, LSA6049B, LSA6049BD, LSA6049X, LSA6050B, LSA6051B, LSA612G, LSA6143B, LSA6143X, LSA6143X7, LSA6145B, LSA6145G, LSA6145N, LSA6145X, LSA6145X7, LSA6147B, LSA6147BD, LSA6147BH, LSA6147X, LSA6147X7, LSA6147XH, LSA6148B, LSA6149B, LSA614G, LSA614X7, LSA6151B, LSA6245B, LSA6245G, LSA6245N, LSA6245X, LSA6246B, LSA6246G, LSA6246X, LSA6248B, LSA6248G, LSA624G, LSA643BPQ, LSA643XPQ, LSA647B, LSA647X, LSA649B, LSA649X, LSA650B, LSA651B, LSA651BD, LSA653B, LSA653E, LSA653PE, LSA657BE, LSAP6245X, LSAP6248X, LSAP6251G, LSB01-2, LSB03-1, LSB05-1, LSB05S, LSE1004EB, LSE3004BA, LSE3004TA, LSG62, LSG62S, LSG63, LSG63X, LSP1449B, LSP1449N, LSP1449X, LSP1453B, LSP1453N, LSP1453X, LSP653B, LSP653B1, LSP653N, LSP653N1, LSP653X, LSP653X1, LSPX1253, LT45, LVF10B, LVF53B, LVF610B, LVF612X, LVF612X7, LVF613G, LVF613X, LVF649B, LVF650B, LVF651B, LVF652B, LVIN12, LVS1249B, LVS1251B, LVS1251B1, LVS1251N, LVS1251S, LVS1251X1, LVS1255B, LVS1255B1, LVS1255S, LVS1255S1, LVS1256B, LVS1256S, LVS1257B, LVS1257B1, LVS1257S, LVS1257S1, LVS1447X, LVS1449B, LVS1449N, LVS1449X, LVS1453B, LVS1453N, LVS1453X, LVS1559BE, LVS4107X, LVS4109B, LVS450B, LVS450B1, LVS450B2, LVS450N, LVS450N1, LVS450N2, LVS450X, LVS450X1, LVS450X2, LVS450X7, LVS452B, LVS452B1, LVS452X, LVS452X1, LVS454B, LVS454B1, LVS454X, LVS454X1, LVS456B, LVS60ELMN, LVS649B, LVS649B1, LVS649N, LVS649N1, LVS649X, LVS649X1, LVS653B, LVS653B1, LVS653N, LVS653N1, LVS653X, LVS653X1, LVS655B, LVS655B1, LVS655EG, LVS655N, LVS655N1, LVS655X, LVS655X1, LVS657B, LVS657SI, LVS657SI1, LVS949X1, LVS953X1, LVW1257, LVX1255, LX1253, PI2003X, PI2003X-1, PK121EB, PK121NE, PK121X, PK123EB, PK123NE, PK123X, PK144EB, PK144NE, PK144X, PL108EB, PL108NE, PL108X, PL1107EB, PL1107EB1, PL1107NE, PL1107NE1, PL1107X, PL1107X1, PL1107X7, PL1108NE, PL1108X, PL1123EB, PL1123NE, PL1123X, PL1123X7, PL113EB, PL113NE, PL113X, PL1144EB, PL1144NE, PL1144X, PL1144X7, PL1145NE, PL1145X, PL1145X7, PL115NE, PL115X, PL123EB, PL123NE, PL123X, PL144EB, PL144NE, PL144X, PL145EB, PL145NE, PL145X, PL148NE, PL148X, PL19-2, PL19-3, PL19-4, PL19-7, PL19X-3, PL19X-4, PL19X-7, PL2006X, PL300KX, PL4107NE1, PL4107X, PL45XME, PL4648XD7, PL60XME, PL60XME1, PL6148XD7, PL614WH, PL614WH-1, PL614X, PL614X-1, PL623X, PL623X-1, PL648GSA, PL663WH, PL663X, PL663X-1, PL673WH, PL673X, PL700KX, PL700KX1, PL700X, PL8210X, PL8210X-1, PL8210X-2, PL823X, PL8605WTD, PL8605X, PL8605X7, PL8605X8, PL8605XT7, PL8605XTD, PL945X-2, PL945X-3, PL95EB, PL95NE, PL961-3, PL961D-2, PL961DEB2, PL961DX-2, PL961EB-3, PL961X-3, PL984EB-2, PLA447B, PLA447N, PLA447X, PLA451B, PLA451N, PLA451X, PLA4546X, PLA4550B, PLA4550N, PLA4550X, PLA4550XD, PLA4645X, PLA4645X7, PLA4648B, PLA4648N, PLA4648X, PLA4648X7, PLA4648XD, PLA4745B, PLA4745N, PLA4745X, PLA6045B, PLA6045N, PLA6045X, PLA6047B, PLA6047N, PLA6047X, PLA6047X7, PLA6049XD, PLA6051B, PLA6051N, PLA6051X, PLA612X, PLA613X, PLA6143B, PLA6143N, PLA6143X, PLA6143X7, PLA6145B, PLA6145N, PLA6145X, PLA6145X7, PLA6147G, PLA6147X7, PLA6148B, PLA6148G, PLA6148N, PLA6148X7, PLA6148XD, PLA615X7, PLA6245B, PLA6245N, PLA6245X, PLA6246B, PLA6246N, PLA6246X, PLA6248B, PLA6248N, PLA6248X, PLA6248X7, PLA6348B, PLA6348N, PLA6348X, PLA6348XD, PLA643XPQ, PLA647B, PLA647N, PLA647X, PLA649B, PLA649N, PLA649X, PLA651B, PLA651BD, PLA651N, PLA651ND, PLA651X, PLA651XD, PLA653B, PLA653N, PLA653X, PLA8645X, PLA8743X, PLA8743X7, PLB653BD, PLB653ND, PLB653XD, SA4510X, SA4510X1, SA5563WH, SA614W, SA614X, SA614X-1, SA623WH, SA623X, SA623X-1, SA626X, SA628WH, SA628X, SA628X-1, SA663WH, SA663WH-1, SA663X, SA663X-1, SA673BK, SA673WH, SA673X, SA683X, SA683X-1, SA683X-2, SA8200X, SA8210BI, SA8210W, SA8210W-1, SA8210X, SA8210X-1, SA8211X, SA8211X-2, SA8211XWS, SA823X, SA8600X, SA8605BI, SA8605W, SA8605WTD, SA8605X, SA8605X7, SA8605X8, SA8605XT7, SA8605XT8, SA8605XTD, SA945W-2, SA945W-3, SA945X-2, SA945X-3, SA945X7, SD947P, SDCY66, SDCY66-1, SDCY66X1, SNZ2003W, SNZ2003X, SNZ2004W, SNZ2004X, SNZ414IS, SNZ414S, SNZ442S, SNZ614X, SNZ642IS1, SNZ642IS2, SNZ642IS3, SNZ642S-1, SNZ642S-2, SNZ642S-3, SNZ642W-1, SNZ642W-2, SNZ642W-3, SNZ643IS, SNZ643S, SNZ643S-1, SNZ643S7, SNZ653S, SNZ693IS, SNZ693S, SNZ693S7, ST107, ST108, ST1105, ST1107, ST1107S, ST1108, ST1108S, ST111, ST111E, ST112, ST112-1, ST112-2, ST1123, ST1123S, ST1123S-1, ST1124, ST1124S, ST1124S-1, ST1125, ST1125-1, ST113S, ST114, ST1144, ST1144S, ST1145, ST1145S, ST1146, ST1146SE, ST114S, ST115S, ST116S, ST12, ST122, ST123, ST124, ST143, ST144, ST145, ST146, ST147, ST147AT, ST148, ST149, ST14XSA, ST1FABNE, ST1FABP, ST1FABR, ST1FABRO, ST212, ST214, ST4, ST4105, ST4106, ST4107, ST4108, ST5, ST648SA, ST663, ST663-1, ST663-2, ST693, ST693-1, ST8605, ST8605-1, ST863, ST863S, ST864S, ST865, ST865S, ST868, ST93P, ST95-1, ST970EK, ST996-1, ST997, ST997-1, STA12XPQ, STA14X, STA14X7, STA445, STA447, STA451, STA4546, STA4550, STA4550D, STA4552, STA4645, STA4648, STA4648A, STA4648D, STA4745, STA4845, STA4846, STA6043, STA6045, STA6045BE, STA6047, STA6049D, STA6051, STA612, STA613, STA6143, STA6145, STA6147, STA6148, STA6148D, STA6149D, STA6149D1, STA6245, STA6246, STA6248, STA6248D, STA6249, STA643PQ, STA645Q, STA645S, STA647, STA649, STA653, STA653D, STA8614X, STA8614X7, STA8645, STA8647, STA8743, STA8743PQ, STA8745, STA945-2, STA945-3, STB453, STC75, STC75NZ, STG1, STG2, STG3, STH903, STH905, STL827A, STL827B, STL867A, STLA828A, STLA828B, STLA868A, STMW10, STMW24A, STMW24S, STMW25S, STMW26, STO903, STO903-1, STO905, STO905-1, STO905SA, STX1-3, STX1-4, STX1-5, STX1C, STX20-2, STX2-2, STX2-3, STX2C, STX2C7, STX2DK, STX2L, STX2LA, STX2P, STX2SA, STX4-3, STX45-3, STX45S, STX643, STX6L, STX6S, STX6S1, TDS45, UKSTX1-1, UKSTX2-1, UKSTX2-2, UKSTX4-1, UKSTX45-1, UPOD450, UPOD452, VIS-1, WDI6043, WF710-2, WF711, WF715-2, WF720, WS60-1, WT1105, WT112, WT112-1, WT112-2, WT1123, WT1123-1, WT1123-2, WT1124, WT1125, WT1125-1, WT12, WT122, WT144, WT95-1

WHIRLPOOL DISHWASHER

A-126, BR812, DW12, DW6006, DW867X(LI), DW897X(LI), DWN17X, DWN17X(NZ), DWN21, DWN21-1, DWN28B, DWN28BX, DWN28S-S(NZ), DWN28S-S.1, DWN28X, DWN28X(NZ), DWN31, DWN31BX, DWN38L, DWN38LX, DWN38S, DWN41, DWN41BK, DWN41BX(BK), DWN49X, DWN51, DWN51BX, FR1200, GSA302-1CN, GSA302-1SW, GSA302B, GSA302B-1, GSA302CN, GSA302CNNEW, GSA302SW, GSA302SWNEW, GSA302W, GSA302W-1, GSA302WNEW, GSA602-1CN, GSA602B, GSA602B-1, GSA602CN, GSA602CNNEW, GSA602SW, GSA602SW-1, GSA602SWNEW, GSA602W, GSA602W-1, GSA602WNEW, KDW39X(NZ), LL4000Q, PGS6, PSG6.1(IX), PSG6.1-1BK, PSG6.1-1BR, PSG6.1-1WH, PSG6.1BK, PSG6.1BR, PSG6.1WH, RDW1217, RDW1217G, RDW1221, RDW1221F, RDW1238D, RDW1241F, VOG914-1

WHIRLPOOL WASHING MACHINE

HL428TPP, LRE400Q, LRI600Q

ZEROWATT TUMBLE DRYER

ZL821/1, ZL825/1ECO, ZL831/1ECO, ZL835ECO/1, ZL835NNECO/1, ZL835NXECO/1, ZL835SILVER, ZL845ECO/1

Get Expert Appliance Spare Part Help

Can't find your model number listed or need help identifying the correct part? Contact our parts advisors with your full model and serial number, and we'll verify the correct part for your appliance.

More Info

More Information
Further Description	Common Faults & Symptoms The following fault codes and symptoms are commonly reported when this part begins to fail. Use this as a diagnostic guide before ordering a replacement — if more than one of these is present, the part is the likely culprit. 1 Appliance Completely Dead (No Power, No Display) The machine is plugged into a proven working socket but shows no signs of life at all — no display, no lights, no response to the power button. This is one of the most common signs of a failed mains interference filter, because the filter sits directly in the supply path and can open-circuit internally. Check the plug fuse first, then test for voltage at the filter input terminals to confirm the supply is reaching it. 2 RCD Trips Immediately on Plug-In The household earth leakage device trips the instant the machine is plugged in, before any cycle is started or any button is pressed. This points to a fault upstream of the cycle logic — in other words, in the filter or the wiring between the plug and the filter. A shorted filter capacitor is the usual cause. Do not keep resetting the RCD and trying again; isolate the machine and test the filter. 3 Burning Smell or Visible Scorching Around the Filter A sharp smell of burning wiring or a visible scorch mark on the filter body is a strong indicator that the internal capacitor or suppressor has failed. In some cases the filter will be visibly cracked or swollen. If you can smell burning, stop using the machine immediately and isolate it at the wall — a failed filter can be a fire risk as well as an electrical hazard. 4 Electric Shock From the Machine Casing If you feel a tingle or shock when touching the metalwork of an unearthed appliance, the filter may have failed in a way that is allowing mains voltage to reach the casing. This is a serious safety hazard and the machine must be disconnected immediately. Do not use the appliance again until the filter has been replaced and the earthing checked. 5 Interference on Nearby Radios, TVs or Broadband If you notice crackling, buzzing or picture disturbance on a radio, television or broadband router when the appliance is running, the filter is no longer suppressing electrical noise effectively. This is often an early warning that the filter is degrading, and it can worsen over time until the filter fails completely. Test by running the machine and listening for interference on a nearby radio. 6 Plug Fuse Blows Repeatedly If the fuse in the plug blows as soon as the machine is switched on, or repeatedly during use, the filter may be drawing excessive current due to an internal short. Before replacing the filter, check the plug wiring and the mains lead for damage, and confirm the correct fuse rating is fitted. If the fuse blows again with a new filter, further investigation is required. 7 Candy / Hoover Error Codes Various error codes may appear on Candy and Hoover appliances when the mains filter is failing, often related to communication faults or power supply instability. These codes are model-dependent and may not always point directly to the filter. If the appliance shows intermittent faults alongside any of the electrical symptoms above, check the filter and supply stability before replacing other components. 8 Smeg Error Codes Smeg dishwashers can display a range of error codes when the control board detects a fault in the power circuit or an unstable supply. Where the mains filter is failing, the board may log intermittent codes that do not correspond to a specific component fault. Check the supply and filter before assuming a board or component failure. 9 Intermittent Power Loss or Random Shutdowns The machine may start a cycle normally but then lose power partway through, or shut down and restart without warning. This can happen when the filter's internal connections have become intermittent due to heat cycling or a partially failed capacitor. Check the spade terminals on the filter for tightness and signs of arcing before replacing. Before Ordering, Check These First Confirm the plug fuse is intact and the socket is supplying power before suspecting the filter. Inspect the filter body for scorching, cracking, bulging or a burning smell — these are the most reliable visual signs of failure. Test the filter with a multimeter for continuity and insulation resistance, checking for shorts between live/neutral and earth. Check that the appliance is correctly earthed and that the mains lead and plug are in good condition. If the appliance trips the RCD on plug-in, treat it as a serious fault and do not continue using it. Verify your full model number against the compatibility list above, as filter ratings and terminal layouts vary between machines. Disclaimer: The fault codes and symptoms listed above are intended as a general guide to assist with diagnosis. They cannot be taken as a definitive diagnosis of any particular problem, and other components may produce similar symptoms. Always confirm the fault with proper testing before ordering parts. Please note: Many manufacturers have changed the design of the suppressor and the part may differ to the original but the part supplied is a suitable alternative. D.E.M. F3CC70002F type 250V 50/60Hz 16A 0,1µF - temperature max 40°C
Alternate Part Number	HVR91200489, 5031689242554, CAN91200489, D068003, D068001
