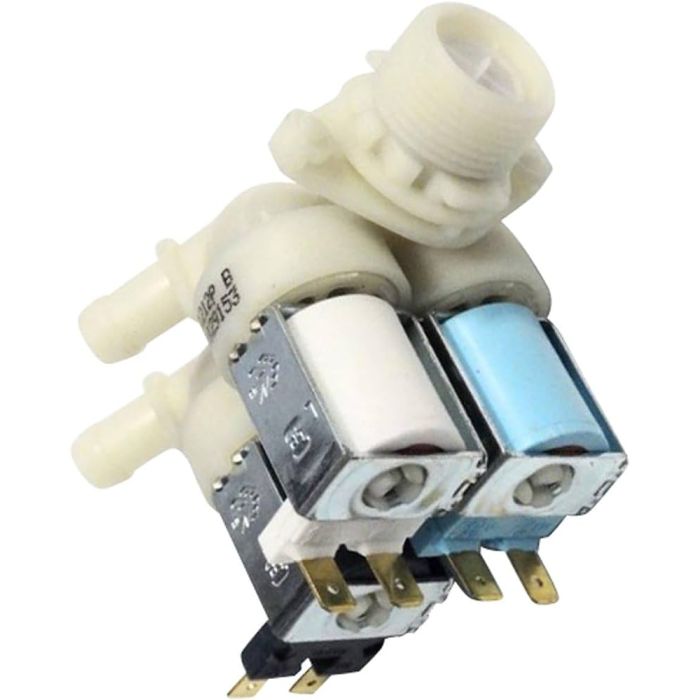

Cold Water Triple Inlet Valve
Replacement cold water triple inlet valve – genuine spare part compatible with Baumatic, Candy and Hoover washing machine models as shown unless advised otherwise
Description
This genuine cold water triple inlet valve matches the original factory-fitted component, providing reliable water control and a precise fit for the washing machine.
Manufactured to the original equipment specification, it regulates cold water flow into the detergent drawer and drum, opening and closing at the control board's command to ensure the correct water level for each phase of the wash cycle. With its 3-way configuration and 2x180° + 1x90° outlet arrangement, it delivers water to the correct compartments at the right time. As a genuine replacement, it matches the quality and durability of the valve originally supplied with the appliance.
The valve fits a wide range of Baumatic, Candy, and Hoover washing machine models, and the compatibility sections below show the known applications. Because inlet valves can look very similar between appliances, and the outlet angles and connector type can vary, checking the full model number is the safest way to confirm the correct fit.
This water inlet valve will only fit the washing machine models as shown or as advised and will not fit any others, even if it looks like the one you need to replace. If you are unsure, please don't hesitate to contact us and ask for assistance.
Technical Notes
Specifications: Type: Cold water triple inlet solenoid valve; Configuration: 3-way; Outlet angles: 2 x 180° and 1 x 90°; Bore: 12 mm; Connector type: Push fit; Voltage: 220–240 V; Product code: COLD-WATER-TRIPLE-INLET-VALVE.
Safety note: This part operates at mains voltage and is connected to the water supply. Isolate the washing machine from the power and water supply before fitting. Place a towel and shallow container below the valve to catch residual water. A competent person should carry out the installation.
BAUMATIC WASHING MACHINE
BWDI1206
CANDY WASHING MACHINE
GOW464-80, CDB 754D/1-8, CDB 475D/1-0, CDB 854D-80, GOW475-80, CDB 264-80, CDB 754D-80, 31800094 (CDB264-80), 31800169 (CDB264N-80), 31800086 (CDB464-47S), 31800112 (CDB465-47S), 31800087 (CDB475D-01S), 31800150 (CDB475D-07), 31800108 (CDB475D-1-01S), 31800190 (CDB475DN-07), 31800152 (CDB475DN-1), 31800109 (CDB485D-1-37S), 31800085 (CDB485D-37S), 31800175 (CDB485DN-1-S), 31800104 (CDB754D-1-80), 31800081 (CDB754D-80), 31800159 (CDB754DN-1-80), 31800115 (CDB854D-80), 31800173 (CDB854DN-80), 31005650 (COW644S-47), 31100372 (CST570-47), 31006238 (GVW1585TC3B-80), 31006234 (GVW1585TC3W-80), 31006254 (GVW45385TC-07), 31006297 (GVW485D-47), 31006298 (GVW485DS-47), 31006299 (GVW485T-47), 31006280 (GVW485T-S), 31006175 (GVW5117LWHCS-S), 31006261 (GVW585TWC-84), 31006337 (GVW596LWC-47), 31006235 (GVW596LWC-80), 31006300 (GVW885L-47)
HOOVER WASHING MACHINE
VHW656D-80, VHW654D-80, VHW856D-80, WDYN856DG, VHW854ZD-86S, VHW854D-80, VH W854DB-80, VHW458A-80, WDYN854D-80, WDYN854DB-80, VHW966DP-80, VHW964D-80, VHW964D-14S, WDYN9666PG, WDYN9646G-80, HDB 642-80, HDB854D-80, HDB 854D-30S, HDB854D/1-80, 31005335 (HAWD 10746-47), 31005254 (HAWD 10746P8-47), 31005255 (HAWD 11746P8-47), 31005253 (HAWD 9646P8-47), 31800093 (HDB 642-80), 31800172 (HDB 642N-80), 31800107 (HDB 854D-1-30S), 31800084 (HDB 854D-30S), 31800080 (HDB 854D-80), 31800158 (HDB 854DN-1-80), 31800177 (HDB 854DN-1-S), 31800103 (HDB854D-1-80), 31005272 (VH W580D-47), 31002932 (VH W644D-30S), 31002992 (VH W654D-80), 31002991 (VH W656D-80), 31002990 (VH W854D-80), 31003336 (VH W854DB-80), 31002900 (VH W854DP-47), 31003582 (VH W854ZD-1-86S), 31002989 (VH W856D-80), 31002988 (VH W964D-80), 31002921 (VH W964DP-37S), 31002929 (VH W964DP-47), 31002987 (VH W966DP-80), 31003427 (VHW458A-80), 31002931 (VHW854ZD-86S), 31003228 (VHW964D-14S), 31004743 (WD9616C-80), 39100088 (WD9616C-80), 31005755 (WDYN 11743D-S), 31005145 (WDYN 11746PG-17), 31005407 (WDYN 11746PG8-84), 31004854 (WDYN 11746PG8-S), 31005849 (WDYN 458A-80), 31005409 (WDYN 4853D-84), 31005408 (WDYN 4963D-84), 31004419 (WDYN 6545D-04S), 31003514 (WDYN 654D-30S), 31005852 (WDYN 654D-80), 31005850 (WDYN 656D-80), 31004341 (WDYN 754D-S), 31005470 (WDYN 755D-80), 31005471 (WDYN 755DB-80), 31005620 (WDYN 8154D-80), 31003648 (WDYN 854DG-86S), 31004778 (WDYN 855D-80), 37502838 (WDYN 855D-80), 31006089 (WDYN 855DB-80), 31005621 (WDYN 856DS-80), 31005624 (WDYN 8615D8P-80), 31006244 (WDYN 8615D8PB-80), 31005926 (WDYN 9646G-31), 31003343 (WDYN 9646P-AUS), 31005380 (WDYN 9646PG-17), 31003516 (WDYN 9646PG-30S), 31005753 (WDYN 9646PG-30S), 34000511 (WDYN 9646PG-30S), 34345678 (WDYN 9646PG-30S), 31004315 (WDYN 9646PG-DK), 31005851 (WDYN 964D-S), 31006054 (WDYN 9654D8X-80), 31003837 (WDYN 966PG-47), 31005189 (WDYN11746PG8-80), 31003584 (WDYN854D-80), 31003586 (WDYN854DB-80), 31003585 (WDYN856DG-80), 31003591 (WDYN9646G-80), 31003590 (WDYN9666PG-80), 31005924 (WT 14107 E), 31003016 (WT 1496 E)
Get Expert Washing Machine Spare Part Help
Can't find your model number listed or need help identifying the correct part? Contact our parts advisors with your full model and serial number, and we'll verify the correct part for your appliance.
| Further Description |
Common Faults & SymptomsThe following symptoms are commonly reported when a cold water triple inlet valve begins to fail. Use this as a practical guide before ordering a replacement — if more than one of these is present, the valve is the likely culprit. 1
Machine Will Not Fill with Water
The washing machine starts but no water enters the drum, or the fill stops almost immediately. A valve that has failed in the closed position cannot open to allow water through, preventing the cycle from running.
2
Detergent or Conditioner Not Dispensed
The machine does not draw detergent or conditioner from the drawer, or the compartments remain full. The valve may not be directing water to the correct section of the dispenser, leaving the wash without cleaning agents.
3
Error Code E02 (Water Fill Fault)
The machine displays an E02 error code, indicating a water fill problem. This is commonly triggered when the valve cannot open, the flow rate is insufficient, or the water pressure is too low. Similar codes may appear on Hoover, Candy and Baumatic models.
4
Machine Constantly Fills or Overflows
Water continues to enter the drum even when the machine is off, or the drum overfills during a cycle. A valve that has failed open or is not sealing correctly can allow water to pass continuously, risking a flood.
5
Buzzing or Humming Noise from the Valve Area
A buzzing or humming noise is heard while the machine is filling, or continuously. A failing solenoid coil can produce an audible hum as it struggles to open or close, even if water flow is restricted.
6
Cycle Taking Much Longer Than Normal
The wash cycle extends beyond its usual duration. A restricted valve can slow the fill, causing the machine to wait longer than expected for the correct water level before proceeding to the next stage.
7
Water Leaking from the Valve Area
Water is visible around the valve or dripping from the rear of the machine. A cracked valve body or a worn internal diaphragm can allow water to escape, particularly when the valve is under pressure.
8
Valve Coil Showing Signs of Burning or Corrosion
The solenoid coil or its terminals appear burnt, melted or corroded. This indicates electrical overheating or water damage and is a strong sign that the valve has failed and should be replaced.
Fitment GuidanceThis part is compatible only with the models listed in the compatibility matrix above. Even if a valve looks visually similar, the outlet angles, bore size and connector type can differ between models.
Diagnostic TipsBefore concluding that the valve needs replacing, carry out these checks to rule out other causes.
Installation GuideThese steps describe the general procedure. The exact sequence varies between models, so always consult the appliance service manual where available.
Before Ordering, Check These First
Disclaimer: The fault codes and symptoms listed above are intended as a general guide to assist with diagnosis. They cannot be taken as a definitive diagnosis of any particular problem, and other components may produce similar symptoms. Always confirm the fault with proper testing before ordering parts. |
|---|---|
| Alternate Part Number | HVR41029153, HVR41028733, 5045176254401, 5045381669823, 5045178767503, CAN41029153, GDP082637866, HVR41013616 |
| EAN Number | 8032767576544 |
| Manufacturer | CAN |
| Genuine Part | Yes |
Washing Machine
Water Valves
Water inlet valves are often model-specific or keyed for certain washing machines and washer dryers. Correct identification is vital to ensure the right fit.
Model-Specific Valves
Many washing machine and washer-dryer water valves are production-specific, with unique mounts or electrical connectors. Always order using your model number, and provide any additional details if required.
Using Generic Fill Valves
Universal valves can work for standard machines but may require adaptations. Use them at your own risk. They can save significant money but aren’t guaranteed to fit every keyed or restricted valve design.
Restrictors & Complex Valves
Twin or triple valves, or those with built-in restrictors, usually cannot be replaced with generic valves. Dishwashers often require the original valve due to pressure chambers or keyed designs.
Can't Find The Water Valve?
If you’re unsure about the correct valve, please reach out. Our team can quickly identify compatible parts and help you find low-cost, correct water valves for your washing machine or washer dryer.
Need Help Finding the Correct Water Valve?
Provide your washing machine make, model, and serial/production code. We’ll confirm the correct valve and compatible alternatives to prevent ordering errors.
Contact Support Team
