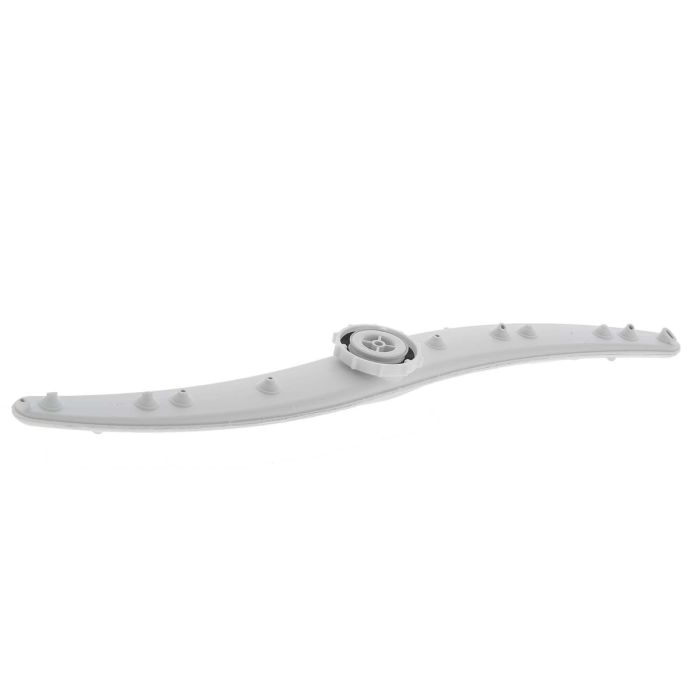

Upper Spray Arm
Replacement dishwasher upper spray arm – compatible with Ariston, Creda, Gorenje, Hotpoint, Indesit, Midea, Scholtes and Whirlpool as shown unless advised otherwise
Description
Restore sparkling clean dishes on the top rack with this genuine upper spray arm. As an original component, it matches the arm fitted at the factory, with the same length, nozzle positioning, and mounting clip design.
The arm rotates during the wash cycle, directing pressurised water through its nozzles onto the dishes in the upper basket. Manufactured from durable, food-safe plastic, it is designed to withstand the heat and detergent of daily dishwasher use without cracking or warping. A genuine arm ensures the correct spray pattern and water distribution, so glasses, cups, and bowls come out consistently clean.
This upper spray arm is only known to fit the models as shown or as advised and will not fit any others because even if it looks the same, it probably won't be. There are often several that look alike but aren't; please take time to confirm this is correct before ordering. If you are unsure, please don't hesitate to contact us and ask for assistance. This part is also confirmed to fit dishwashers from a wide range of additional brands listed in the compatibility section below.
Upper spray arms commonly fail through clogged nozzles, cracked arms, or a broken mounting clip that prevents the arm from rotating. When the arm cannot spin freely, water isn't distributed evenly, leaving food residue on the top rack and often causing a rattling or scraping noise during the cycle. This genuine replacement matches the original part's specifications and performance, restoring proper water coverage and cleaning results.
Technical Notes
Specifications: Genuine dishwasher upper spray arm. Material: food-safe polypropylene plastic. Dimensions: approximately 455 mm (L) x 58 mm (W) x 27 mm (H). Supplied with mounting clip and spray arm bearing where applicable. Product code: C00075746.
Safety note: Always disconnect the appliance from the mains supply before beginning any work. Allow the dishwasher to cool and drain any residual water before removing the spray arm. Wear gloves when handling the old arm, as detergent residue and sharp edges may cause irritation.
Fitment guidance: This spray arm fits only the models listed in the compatibility matrix below. It is also confirmed to fit dishwashers from Amica, Ardo, Aspes, Aya, Bauknecht, Bompani, Brandt, Carrefour Home, Coldis, Continental Edison, Daewoo, Essentiel B, Exquisit, Far, Generiss, Helkama, Hisense, Hyundai, Ignis, Ikea, Jeken, Jetwash, King D Home, Koerting, Krona, Kaiser, Korting, Küppersbusch, Linke, Merloni, Mora, O.e.m, Philips, Premiere, Sidex, Smeg, Sogedis, Surfline, Teka and Thomson. Model numbers can be found on the rating plate on the inner edge of the door or on the rear panel.
ARISTON DISHWASHER
D62A, DG 6400 W TK, LI64A, LS 2005 TK, LS 2010 E, LS 2020 A, LS 2020 UK, LS 2040 UK, LSI62, LSV 615 BK NEU, LSV 615 BR NEU, LSV 615 IX NEU, LSV 615 OW NEU, LVZ 680 PLUS
CREDA DISHWASHER
IDI60, IDV60B, IDV60W
GORENJE DISHWASHER
290039, GS60011W, GS61110BW, GSI650E, GV62110, KGV610, MV62110, PMS60S, SGI600E, WQP12-9026A, WQP12-9338, WQP12-DL0607
HOTPOINT / HOTPOINT-ARISTON DISHWASHER
BFI62, BFI620, BFI670, BFI68, BFI680, BFQ700I, BFQ700T, BFT680X, BFT68X, BFV620B, BFV620K, BFV620W, BFV620X, BFV62B, BFV62K, BFV62W, BFV62X, BFV680X, BFV68X, BFZ680X, BFZ700X, DWF40P, DWF40P.2, DWF50N, DWF50P, DWF50PT, DWF50S, DWF70N, DWF70P, DWF70S, DWM55A, DWM75A, DWT10P, DWT10P.2, FDW20P, FDW60G, FDW60P, FDW60P.1, FDW60T, FDW65A, FDW70G, FDW70P, FDW70T, FDW75A, FDW80G, FDW80P, FDW80T, FDW85A, IDL530UK.2
INDESIT DISHWASHER
AF250, AFA250, AFA300SSUK, AFA300UK, AFA350, AFA350X, AFA370X, AFA400, AFA400XUK, BFI620, D61EU, D62A, D62EU, D63A, D63AB, D63EU, D63FR, D63SUK, D63UK, D63Z, D64EU, D650A, D653A, D65UK, D67SUK, D71IT, D71SIIT, D72(EU)B, D72ANIT, D72SI(EU)B, D72SI(IT)B, D72SIEU, D72SIIT, D72SK, D72SSK, D74FR, D74SFR, D75FR, DG6300WF.1, DG6400WTK, DI6, DI6000, DI620, DI620A, DI620UKE, DI623, DI623A, DI62AB, DI62B, DI62UK, DI63A, DI63AB, DI63Z, DVG621BK, DVG621IX, DVG623BK, DVG623IX, DVG623WH, DVG672AWH, DWN41, IDE100EU, IDE100(EU), IDE750IT2, IDF800EU.2, IDL500EU.2, IDL500FR, IDL500SEU.2, IDL500UK, IDL500UK.2, IDL5055SK.2, IDL505SUK, IDL505SUK.2, IDL506FR, IDL506FR.2, IDL507FR, IDL507FR.2, IDL50EU, IDL50EU.2, IDL50SEU.2, IDL50SK.2, IDL51EU, IDL530UK.2, IDL530UK.3, IDL550EU2, IDL550FR, IDL550IT.2, IDL550SIT.2, IDL553FR2, IDL555SFR.2, IDL556FR2, IDL556SFR, IDL556TC, IDL557SFR.2, IDL55T49EU.2, IDL55T4C, IDL55T50EU, IDL55T50EU.2, IDL57PT, IDL60NL2, IDL700FR, IDL702FR.2, IDL706FR.2, IDL70EU, IDL710, LD20UK, LD87UK, LI62UK, LI64A, LI680DUO, LI68DUOUK, LSI62, LSI68AAAUK, LSV66BKUK/1, LSV66BRUK/1, LSV66IXUK/1, LSV66WHUK/1, LV62BKUK, LV62BRUK, LV62IXUK, LV62WHUK, LV640ABK, LV640AWH, LV68DUOIXUK, LVO68DUOIX, LVO68DUOIXUK, LVX12-45 IX, LVX12-46AN
MIDEA DISHWASHER
12176000009128
SCHOLTES DISHWASHER
LVA1256AN, LVL1267IX, LVX12-45 IX, LVX1245WH, LVX12-56IX
WHIRLPOOL DISHWASHER
57I62A, CISLI705EXTRA, DWN41, LV62BK
OTHER COMPATIBLE BRANDS
The part is also confirmed to fit dishwashers from the following brands: Amica, Ardo, Aspes, Aya, Bauknecht, Bompani, Brandt, Carrefour Home, Coldis, Continental Edison, Daewoo, Essentiel B, Exquisit, Far, Generiss, Helkama, Hisense, Hyundai, Ignis, Ikea, Jeken, Jetwash, King D Home, Koerting, Krona, Kaiser, Korting, Küppersbusch, Linke, Merloni, Mora, O.e.m, Philips, Premiere, Sidex, Smeg, Sogedis, Surfline, Teka, Thomson.
Get Expert Dishwasher Spare Part Help
Can't find your model number listed or need help identifying the correct part? Contact our parts advisors with your full model and serial number, and we'll verify the correct part for your appliance.
| Further Description |
Common Faults & SymptomsThe following fault codes and symptoms are commonly reported when this part begins to fail. Use this as a diagnostic guide before ordering a replacement — if more than one of these is present, the part is the likely culprit. 1
Dishes on the Top Rack Not Cleaning Properly
The most common symptom of a failing upper spray arm. Glasses, cups and bowls on the top rack come out with food residue, spots or a greasy film, while the lower rack cleans normally. This happens when the arm cannot rotate freely or its nozzles are clogged, so water is not distributed evenly across the upper basket.
2
Spray Arm Not Rotating During the Cycle
If you open the dishwasher mid-cycle and the upper arm is always in the same position, it is not rotating. This can be caused by a broken mounting clip, a cracked arm, or debris blocking the bearing. A stationary arm leaves large areas of the upper basket unwashed.
3
Rattling or Scraping Noise During the Wash
A damaged or loose spray arm can knock against the upper basket or the dishwasher door as it turns. This produces a rattling or scraping sound that is often most noticeable during the wash and rinse stages. Prolonged contact can damage the arm further and may scratch the door interior.
4
Visible Cracks or Broken Mounting Clip
Remove the spray arm and inspect it in good light. Look for cracks along the body of the arm, broken or missing mounting clips, and cracks around the bearing. A cracked arm may still rotate but will spray water unevenly. A broken clip will prevent the arm from staying attached to the upper basket or the water supply tube.
5
Error Code F5 (Ariston / Indesit) — Spray Arms Blocked
Displayed by Ariston and Indesit dishwashers when the control module detects that the spray arms are not rotating correctly. The machine may stop the cycle or fail to clean properly. Check that the upper arm is not obstructed by dishes or cutlery, and that the nozzles are clear. If the code returns after cleaning, the spray arm may need replacing.
6
Error Code F09 (Hotpoint) — Software Error / Spray Arm Fault
Hotpoint dishwashers may display F09 when there is a communication fault between the control board and the spray arm system. In many cases the spray arm is physically obstructed or the motor that drives it is failing. Check the arm for damage and confirm it rotates freely by hand before assuming the control board is at fault.
7
Error Code F6 (Whirlpool) — Water Circulation Fault
Whirlpool dishwashers display F6 when the water circulation system is not working correctly. A blocked or broken upper spray arm can restrict the flow of water through the circulation pump, triggering this code. Check the spray arm nozzles for blockages and confirm the arm rotates freely before inspecting the circulation pump itself.
8
Error Code F10 / F11 / F12 (Gorenje) — Spray Arm or Water Fault
Gorenje dishwashers may display F10 (overfilling), F11 (water outlet fault) or F12 (water inlet fault) when the spray arm is not rotating correctly or water cannot circulate. While these codes can indicate other issues, a blocked or damaged upper spray arm is a common cause of poor water distribution. Check the arm and the filters before diagnosing a more serious fault.
Fitment GuidanceThis upper spray arm is compatible only with the models listed in the compatibility matrix above. It is also confirmed to fit dishwashers from a wide range of additional brands, so even if your appliance is not shown, contact our parts advisors with your full model number before ordering.
Diagnostic TipsBefore concluding that the spray arm has failed, carry out these checks to rule out other causes. Most require only a visual inspection.
Installation GuideThese steps describe the general procedure for replacing a dishwasher upper spray arm. The exact sequence varies between models, so always consult the appliance manual where available.
Before Ordering, Check These First
Disclaimer: The fault codes and symptoms listed above are intended as a general guide to assist with diagnosis. They cannot be taken as a definitive diagnosis of any particular problem, and other components may produce similar symptoms. Always confirm the fault with proper testing before ordering parts. |
|---|---|
| Alternate Part Number | GORENJE (290039); INDESIT (C00075746, C00884661); MIDEA (12176000009128, 673000300044); WHIRLPOOL (482000022687), HPTC00075746, 5031681019178 |
| EAN Number | 8059131757460 |
| Manufacturer | Hot |
| Genuine Part | Yes |
Dishwasher
Spray Arms
Spray arms spin to distribute water evenly inside your dishwasher. They are usually fitted with a nut or clip, mounted on a support or feed tube, and driven by the water from the pump. Proper rotation is crucial for effective cleaning.
Finding Dishwasher Spray Arms
The dishwasher model number is essential when ordering replacement spray arms. Images alone can be misleading, as parts may change over time. Always check before purchasing if you’re unsure.
Contact us via live chat or email if you need assistance. We can verify the correct spray arm for your dishwasher and save you the hassle of returning incorrect parts.
Many common faults, such as blockages or wear, can affect spray arm performance. Cleaning them thoroughly may solve issues without the need for replacement.
Need Help Finding the Right Spray Arm?
Provide your dishwasher make, model, and serial number. We’ll confirm the correct spray arm and offer compatible options, so your dishwasher works like new.
Contact Support TeamIMAGES AND SIZES ARE FOR INFORMATION ONLY
Component parts may vary in shape and size from the images shown. Parts are model-specific and may change at any time. Only order parts that match your model and serial number.
Spray arms and their components can vary depending on the model and position. Always ensure compatibility to avoid poor performance or incorrect installation.
