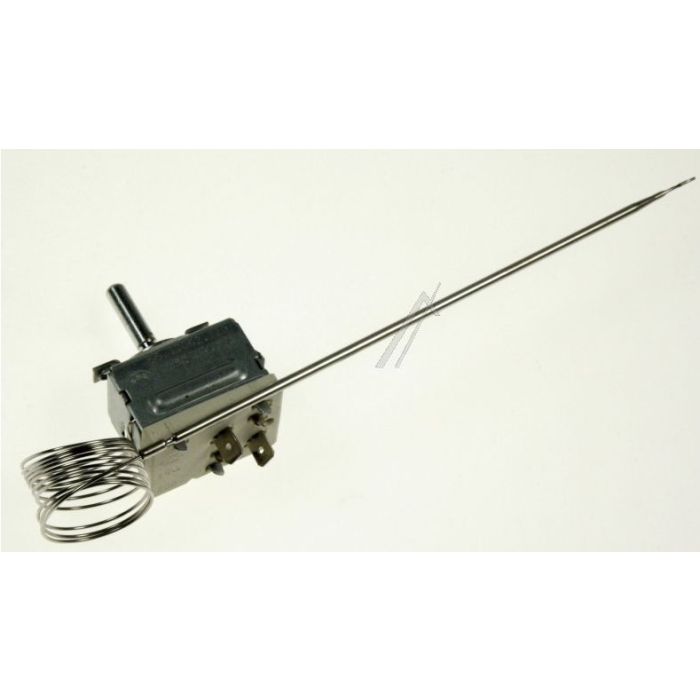

Oven Thermostat
Genuine replacement oven thermostat to fit the models as shown
This thermostat will only fit the models as shown or as specifically advised and will not fit any others even if it looks the same, it probably won't be as there are several that look alike yet are not, please take time to ensure this is correct before ordering. If you are unsure please don't hesitate to contact us and ask for assistance.
Ordered upon request only, non-returnable
Ignis Oven & Cooker
AKS 292/IX, AKS 293/IX, AKS 293/NB, AKS 293/WH, AKS 293/WG, AKS 293/WGN, AKS 293/WT, AKS 293/WP, 701 104 96
Ikea Oven & Cooker
A4453014100 947 53, 100 947 53 OBI C10 W, OV C10 S 501.230.08, 801 423 45, 601 423 46, 601 104 92, 701 104 96, OV C00 S 701.230.07, IBS 124 PWS, IBS 324 RWW, IBS 324 PWS, IBS 324 PWW, OBI S00 AL 700.947.31, 600 947 36, 701.230.07 OV C00 S OVEN IK, 501.230.08 OV C10 S OVEN IK, 701 230 07 OV C00 S OVEN IK, 501 230 08 OV C10 S OVEN IK, 701 230 07 FRAMTID OV C00 S, 501 230 08 OV C10 S, 302.259.13
| Further Description | EGO, Capillary tube length: 794mm, Sensor thickness: 3mm, Switching Value: 273°C |
|---|---|
| Alternate Part Number | 480121100475, 481228208626, 5045175681000, EGO 55.17059.320 278C |
| Manufacturer | WHI |
| Genuine Part | Yes |
Oven Thermostats.
An oven or cooker thermostat controls the temperature inside the oven cavity by switching power to the element within a +/-10-15% tolerance.
Fault Diagnosis
When a thermostat is faulty, symptoms are typically binary: the oven won’t heat at all, or it constantly heats and fails to cut out, resulting in burnt food. Safety thermostats operate similarly but are preset to a single cut-off temperature to prevent overheating.
Technical Testing
Almost all thermostats “break” the live supply once set temperature is reached. If the oven is overheating, the circuit remains closed regardless of setting. If it won’t heat, the thermostat fails to “make” the circuit to power the element.
Electrical Safety Warning
Oven thermostats carry live mains power. They must never be worked on while power is applied to the oven or cooker. Always isolate the appliance from the mains before inspection or replacement.
Sourcing Requirements
When buying a thermostat, precision is crucial. While they often appear identical, they vary significantly in temperature ranges, fitments, and knob offsets.
Can't Find The Thermostat You Need?
We strive to simplify the process. If you encounter difficulties, our team is here to assist. Use our contact page or email as a first resort; we can lookup the exact part and identify cost-effective compatible options for you.
IMAGES AND SIZES ARE FOR ILLUSTRATION ONLY
Parts may vary in shape and size to the images shown as parts are model-specific and subject to change or alteration at any time without notice. This spare part will only fit the models as described in the listing unless specifically advised otherwise by us.
NOTE: Many oven thermostats can be used in different positions and are very specific to the make and model fitting. Please take care when ordering and don't rely solely on images as they largely all look the same!
