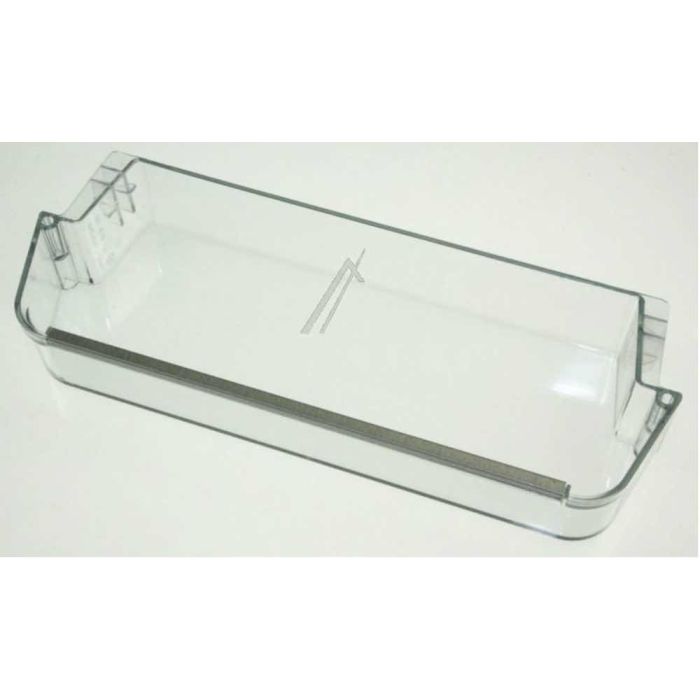

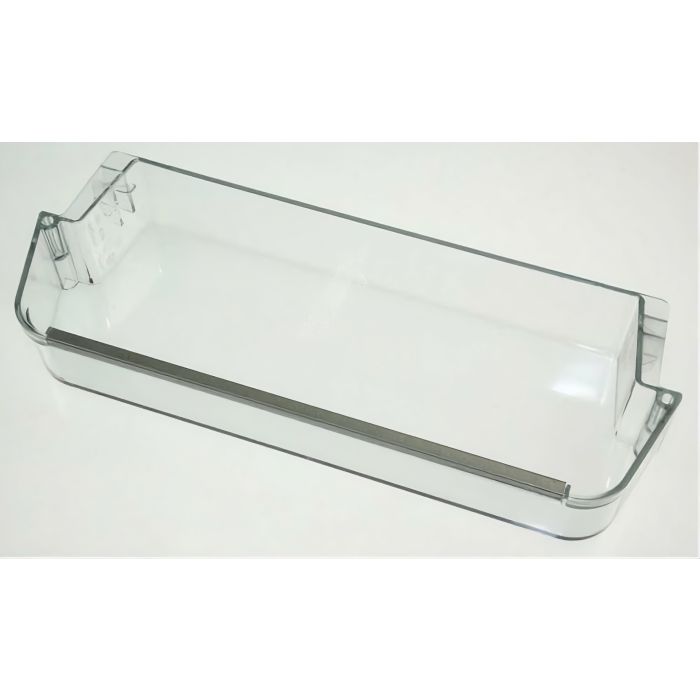

Fridge Door Shelf
Replacement fridge door storage tray – compatible with CDA, Rangemaster, Servis and Sharp fridge freezers as shown unless advised otherwise
Description
A replacement door storage tray for the CDA, Rangemaster, Servis and Sharp fridge freezers listed below.
The tray is the moulded shelf that clips into the inner door of the refrigerator, providing secure storage for bottles, cartons, jars, cans and smaller items. It is designed with a raised front and side profile to stop contents tipping forward when the door is opened and closed, and is supplied as the tray only, without the door liner fixings.
Because the door tray is one of the most frequently used and heaviest-loaded parts of a fridge, it is also one of the most likely to be damaged over the lifetime of the appliance.
Door trays typically fail in one of three ways. The most common is accidental damage when a heavy bottle or jar is dropped onto the tray, or when it is pulled out too hard and the retaining tabs snap. Over time, repeated temperature cycling can also make the plastic brittle, so the tray develops hairline cracks along the base or around the mounting points. Once cracked, the tray can no longer hold weight safely, and bottles may tip or fall when you open the door. A discoloured or warped tray that no longer sits level is also a sign that the plastic has degraded and should be replaced. This door storage tray is only confirmed to fit the models as shown or as specifically advised and will not fit any others, even if it looks the same. It probably won't be, as there are several that look alike yet are not. Please take time to ensure this is correct before ordering. If you are unsure, please don't hesitate to contact us and ask for assistance. Please be aware that this part can vary based on the model and serial numbers determining the suitability, and on the position that they are used in depending on the model, and you will often need to check before ordering that this is correct.
Technical Notes
Specifications: Type: fridge door storage tray / door shelf. Material: moulded plastic. Colour: typically white or clear, depending on model. Fitting: push-fit into the door liner, secured by moulded retaining tabs. Supplied as: door tray only. Product code: 42129034. Suitable for the CDA, Rangemaster, Servis and Sharp fridge freezer models listed below.
Fitment guidance: This door storage tray is confirmed to fit only the CDA, Rangemaster, Servis and Sharp models listed below, and will not fit any others. The model number is normally found on the rating plate inside the refrigerator compartment or on the rear of the appliance, and the full model and serial number should be quoted where possible, as suitability can vary between variants and between the door positions on the same appliance. Because several door trays look almost identical while differing in width, depth, retaining tab spacing and position, always confirm the model number against the compatibility list rather than relying on appearance alone. If you are not certain which position the tray is used in, check our listing images or contact our advisors before ordering.
Diagnostic tip: Before ordering, remove the tray from the door and inspect it carefully in good light. Look for cracks radiating from the retaining tabs, splits along the base, stress marks in the plastic, or a warped and uneven base that no longer sits flat. Check the retaining slots in the door liner at the same time — if these are cracked or broken, a new tray will not sit securely. Confirm which door position the tray is intended for, as upper, middle and lower positions are often not interchangeable and a tray that fits one position may not fit another. If the tray is merely discoloured but still intact, cleaning may be sufficient rather than replacement.
Installation guide: 1. Open the refrigerator door fully and remove any bottles or items from the tray. 2. If removing an old tray, grip it firmly at both sides and lift it upwards while pulling gently towards you to release the retaining tabs from the door liner slots. 3. Clean the door liner slots and the surrounding area, removing any sticky residue or debris. 4. Align the retaining tabs on the new tray with the corresponding slots in the door liner. 5. Push the tray gently downwards into the slots until it clicks or seats firmly in position. 6. Check that the tray sits level and does not wobble. 7. Load the tray with a few light items first and close the door to confirm it does not foul the fridge interior. 8. Once confirmed, reload the tray with bottles and other items, distributing weight evenly.
Safety note: Always unplug the appliance from the mains before carrying out any work inside the refrigerator. The tray is made from plastic and can crack if forced into position — never hammer or lever it into the door liner. Take care when loading heavy bottles onto the tray, and distribute weight evenly to avoid putting excess strain on the retaining tabs. If the tray does not seat securely, do not use it until the correct part has been obtained, as falling bottles can cause injury and damage.
CDA FRIDGE FREEZER
PC870SS
RANGEMASTER FRIDGE FREEZER
RSXS18SCC
SERVIS FRIDGE FREEZER
GT/N910FDVCC(A+), GT/N916-FLX(A+)
SHARP FRIDGE FREEZER
GT/N911FD-GLXY(A+), GT/N910GLXY-U-VCC(A+)
Get Expert Fridge Freezer Spare Part Help
Can't find your model number listed or need help identifying the correct part? Contact our parts advisors with your full model and serial number, and we'll verify the correct part for your appliance.
| Further Description |
Common Faults & SymptomsThe following fault codes and symptoms are commonly reported when this part begins to fail. Use this as a diagnostic guide before ordering a replacement — if more than one of these is present, the part is the likely culprit. 1
Visible Cracks or Splits in the Tray
The most common sign that the door storage tray needs replacing. Cracks often begin around the retaining tabs or along the base of the tray, and can spread quickly once the tray is loaded with bottles. Inspect the tray in good light and look for hairline splits, stress marks or sections where the plastic has become opaque and brittle.
2
Tray No Longer Sits Securely in the Door
If the tray wobbles, tilts or feels loose when the door is opened and closed, the retaining tabs may have worn or snapped. A tray that does not sit flat can allow bottles to tip forward and fall out when the door is opened. Check that the tray is fully seated in the door liner slots and that the retaining tabs are intact.
3
Bottles or Jars Tipping Over When the Door Opens
A cracked, warped or insecure tray cannot hold bottles upright, particularly taller or heavier items. This is both inconvenient and a safety risk, as broken glass and spilled liquids inside the fridge are difficult to clean up and can damage other food. If bottles regularly tip even though the tray appears intact, check whether the tray base has warped or the door liner slots are damaged.
4
Tray Missing or Completely Broken Away
If the tray has been dropped, pulled out with too much force or has broken away entirely, it will need to be replaced. A missing tray reduces storage space and leaves the door liner slots exposed, which can allow items to fall through. Check that no fragments of the old tray remain in the door liner before fitting a replacement.
5
Discolouration or Cloudiness in the Plastic
Over time the plastic can become cloudy, yellowed or stained, particularly if liquids have leaked onto it. While this does not always affect function, a discoloured tray is harder to keep clean and may indicate that the plastic has become porous. If the tray is also showing signs of cracking or warping, replacement is recommended.
6
Difficulty Cleaning the Tray
Cracks and splits in the tray create crevices where food debris and liquids collect, making the tray difficult to clean hygienically. If the tray has cracked or the plastic surface has become rough and pitted, cleaning will not remove all residue, and the tray should be replaced for hygiene reasons as well as for safety.
7
Tray Base Sagging Under Weight
A tray that sags or bows in the middle when loaded is a sign that the plastic has lost its rigidity, often due to age or heat cycling. A sagging tray can cause bottles to lean against each other and may eventually crack. If the tray does not return to its original shape when unloaded, it should be replaced.
8
Replacement Tray Does Not Fit the Door Position
On many models the upper, middle and lower door positions use trays of different widths and depths, and these are not interchangeable. If a replacement tray does not clip into place or sits awkwardly against the door liner, it may be the wrong tray for that position rather than a faulty part. Confirm the tray position on your appliance before ordering, as this can vary even within the same model range and by serial number.
Before Ordering, Check These First
Disclaimer: The fault codes and symptoms listed above are intended as a general guide to assist with diagnosis. They cannot be taken as a definitive diagnosis of any particular problem, and other components may produce similar symptoms. Always confirm the fault with proper testing before ordering parts. |
|---|---|
| Alternate Part Number | 5045383250692, G5982, 5055004942066, 5045383406105, 5045383406112, 5045382415115 |
| Manufacturer | Vestel |
| Genuine Part | Yes |
Fridge Door
Shelves & Storage Trays
Fridge door shelves and storage trays, sometimes called milk or bottle bars, are part of the internal “door furniture.” They slot into the door moulding and are model-specific, making the correct make and model vital when ordering replacements.
Over time, plastic bottle shelves can become brittle and crack, particularly under the weight of heavy glass bottles or through accidental impact. A damaged shelf not only looks unsightly but can also be unstable, risking spillages and broken bottles. Replacing a faulty shelf restores both functionality and appearance.
Choosing The Correct Door Shelf or Tray
These trays are rarely universal and cannot be copied, as they are moulded to suit a specific door panel, colour, and style. Even parts that appear similar across a brand range may not fit correctly. Using the model and sometimes serial or service number is essential to get the correct part.
They simply slot into place, but attempting to fit an incorrect shelf can result in poor stability or unusable storage space. Correct identification is key to avoiding mistakes.
Common Causes of Damage:
-
Overloading with heavy bottles
-
Accidental impact from door closing
-
Age-related plastic fatigue and brittleness
-
Temperature fluctuations causing stress cracks
Care & Maintenance
To maximise the lifespan of your new fridge bottle shelf:
-
Clean regularly using warm soapy water and a soft cloth
-
Avoid abrasive cleaners or scouring pads, which can scratch the plastic
-
Do not use in a dishwasher — hand wash only
-
Avoid overloading — distribute weight evenly across the shelf
-
Check the clips periodically for signs of wear or damage
-
Wipe up spills promptly to prevent staining or residue build-up
Can't Find The Fridge Shelf or Tray You Need?
Fridge door shelves and storage trays vary significantly by model and production batch. Visual identification alone is rarely enough — using your fridge's model number is critical to avoid ordering the wrong shelf.
If your model isn't listed above or you're unsure about compatibility, contact our spare parts team with your appliance make, model, and serial number (or a photo of the plate), and we'll confirm the correct replacement for you
Contact Support Team
Turkish OEM Manufacturing Giant
Vestel
Spare Parts.
Vestel is one of the world's largest appliance manufacturers, rivaling Beko (Arcelik). While you rarely see the "Vestel" badge in a showroom, they build the machines for Sharp, Servis, Bush, Kenwood, and Baumatic, along with scores of high-street retailer labels.
The Rebadging Complexity
Because Vestel manufactures for so many different brands, a single part often fits hundreds of different models under different names. However, minor production changes are frequent, making technical verification essential.
The "Information Gap"
It is common for us to have a Vestel part in stock that fits your machine, even if your machine isn't badged as Vestel. We use our internal technical knowledge to link these rebadged models back to the original Vestel component.
Professional Advisory
Unless you are certain of the part number, always check suitability with our team. A slight variation in a Vestel production run can mean a difference in connector types or control module firmware.
Unsure of your Vestel part?
Don't guess with rebadged Turkish components. Send us your appliance brand and model number, and our technical specialists will perform a manual verification.
Contact Specialist TeamOEM Sourcing Expert • Technical Helpdesk • Established 1988
