Genuine Oven & Cooker Fan Heating Element
Once again you can see that this oven element is used on a range of ovens in the same series, the following list is not entirely complete as there would be far to many to list here, but you can see the pattern of numbers clearly. If you have any doubt at all when ordering simply tell us in the notes field when you order and we'll check it for you to ensure you get the correct spare part.
Tricity Bendix Oven & Cooker
CSE452SV, CSE452W, CSE500X (STRATA), CSE551SV, CSE551W, CSE560BK, CSE560SV, CSE560W, CSIE452B (STRATA), CSIE452GR (STRATA), CSIE452SV (STRATA), CSIE452W (STRATA), CSIE501SV (STRATA), CSIE501WH (STRATA), CSIE508GR (STRATA), CSIE508W (STRATA), CSIE508X (STRATA), DSIE456BK, DSIE456GR, DSIE456SV, DSIE456W, DSIE502GR (CURRYS), DSIE502SV (CURRYS), DSIE502W (CURRYS), SB416GR (AVOCA), SB431B (PRESIDENT), SB431C (PRESIDENT), SB431GR (PRESIDENT), SB431W (PRESIDENT), SB432C, SB432W, SB463BK, SE402W, SE424SV (PRINCE), SE428X, SE454B, SE454BK, SE454GR, SE454SV, SE454W, SE501SV, SE501W, SE505X, SE550W, SE551W, SE553BK, SE553W, SE554BK, SE554GR, SE554SV, SE554W, SE555BG, SE555PW, SE555SV, SE556BK, SE556SV, SE556W, SE558FPS, SE558W, SIE401W, SIE454B, SIE454BK, SIE454GR, SIE454S, SIE454W, SIE501W, SIE505X, SIE524W, SIE531TCBK, SIE531TCBU, SIE531TCC, SIE531TCGR, SIE531TCRD, SIE531TCW, SIE554BK, SIE554GR, SIE554SV, SIE554W, SIE555BG, SIE555PW, SIE555SV, TBD913SV, TBD913W, TBD950WH, TBD950X, 2100C, 2200R, 259OS, ATB3441, ATB3451, ATB3510, ATB3511, ATB3520, ATB3521, ATB4411, ATB4421, ATB4510, ATB4511, ATB45121, ATB4520, ATB4610, ATB4611, ATB4620, ATB4621, BD900/2B, BD900/2W, BD910B, BD910W, BD911B/1, BD911W/1, BS621B/1, BS621W/1, BS660B, BS660W, CSI3302 B, CSI6001B, CSI6001W, CSIE316BU (STRATA), CSIE316GR (STRATA), CSIE316W (STRATA), CSIE451BU, CSIE451GR, CSIE451W, CSIE500B (ALBANY), CSIE500GR (ALBANY), CSIE500W (ALBANY), CSIE501BU (STRATA), CSIE501GR (STRATA), CSIE501W (STRATA), CSIE510BU, CSIE510GR, CSIE510SV, CSIE510W, DSIE328GR (CURRYS), DSIE328W (CURRYS), DSIE343GR, DSIE343W, DSIE500W (DIXONS), EL370W, EL370W EDITION2, RE60DCBK, RE60DCGR, RE60DCW, RE60GCW, RE60SS, SB415GR (AVOCA), SB422B (FANFARE), SB422W (FANFARE), SB423W, SB461B, SB462B (ACCLAIM), SI320, SI400GR, SI4023, SI452B, SI452W, SI453B, SI453W, SI455B, SI455BU, SI455GR, SI455RD, SI455W, SI505B (ACCLAIM), SI505W (ACCLAIM), SI510B, SI510W, SI520B, SI520B EDITION5, SI520W, SI520W EDITION5, SI530B, SI530BU, SI530GR, SI530RD, SI530W, SIE250W (PRINCE), SIE306W, SIE323B, SIE323W, SIE325W POPULAR PLUS, SIE400BU, SIE400C, SIE400GR, SIE400W, SIE424S, SIE459TCBU, SIE459TCC, SIE459TCGR, SIE459TCRD, SIE459TCW, SIE504W, SIE505C (ACCLAIM), SIE505GR (ACCLAIM), SIE514BK, SIE514GR, SIE514W, SIE515BZ, SIE515GM, SIE515SV, SIE520C, SIE520GR, SIE520W, SIE532BK, SIE532BU, SIE532GR, SIE533BK, SIE553W, SIE556W, SIE557BK, SOV50CH, TBD903BK, TBD903W, TBD913B, TBD913SV, TBD913W, BD910BNA, BD910WNA, BD920BNA, BD920WNA, BS630BNA, SB420WNA, SB430BNA, SB430BTS, SB430WNA, SB460BNA, SB460WNAZanussi Oven & Cooker
ZHF865B (DUO), ZHF865N (DUO), ZHF865W (DUO), ZHF865X (DUO), ZUA65B, ZUA65W, ZCE7550BK, ZCE7550W, ZCE7551X, ZCE7610SV, ZCE7610W, ZCE7680BK, ZCE7680W, ZCE7690X, ZCE7700X, ZCE7701CH, ZCE7701X, ZCE7702X, ZCE8021AX, ZCE8021CH, ZCM7901XL, ZCM7901XN, ZCM7902XL, ZCM7902XN, ZCM8021AXN, ZCM8021CHN, ZDF290B, ZDF290W, ZDF290X, ZDF490B, ZDF490W, ZDF490X, ZDQ495ALU, ZDQ495B, ZDQ495N, ZDQ495W, ZDQ495X, ZDQ595N, ZDQ595W, ZDQ595X, ZDQ695ALU, ZDQ695ALUR, ZDQ695N, ZDQ695W, ZDQ695X, ZDQ695XR, ZDQ895X, ZDQ995X, ZHF470B, ZHF470W, ZHF470X, ZHQ575ALU, ZHQ575N, ZHQ575W, ZHQ575X, ZOD890X, ZUF270W, ZUF270X, ZUQ875N, ZUQ875W, ZUQ875XElectrolux Oven & Cooker
DDO60CEGR (PREMIER), DDO60CEWH (PREMIER), DDO61CEBK, DDO61CEGR, DDO61CEW, EBUSS, EDB705B, EDB705GR, EDB705S, EDB705W, EDB710B, EDB710W, EDB710X2, EDB715BU, EDB715GR, EDB715W, EDOMBR, EDOMSS, EDOMWH, EOB948B, EOB948W, EOB949B, EOB949W, EOD5310B, EOD5310W, EOD5310X, EOD5330B, EOD5330K, EOD5330W, EOD5330X, EOD5331K (BLACK), EOD5331X (STAINLESS), EOD6330B (BROWN), EOD6330C (CREAM), EOD6330K (BLACK), EOD6330U (ALUMINIUM), EOD6330W (WHITE), EOD6330X (STAINLESS), EOD6330XK (SS/BLACK), EOD6335K (BLACK), EOD6335U (ALUMINIUM), EOD6335W (WHITE), EOD6335X (STAINLESS), EOD6335XK(STAINLESS), EOD6365G, EOD6390X, EOD980B, EOD980GR, EOD980SV, EOD980W, EOD982B2, EOD982BK2, EOD982C2, EOD982W2, EOD983X2, EOD984B2, EOD984W2, EOD985B2, EOD985GR2, EOD985W2, EOS5330LW, EOS5330LX, EOS5330RW, EOS5330RX, EOU5330W, EOU5330X, EOU6330B BROWN, EOU6330K BLACK, EOU6330U ALUMINIUM, EOU6330W WHITE, EOU6330X ST.STEEL, EOU6330XK S.ST/BLACK, EOU6335X, EOU6365G, EPDOMB (PREMIER), EPDOMCSS (PREMIER), EPDOMSS (PREMIER), EPDOMW (PREMIER), ED925B, ED925W, EOD980B, EOD980GR, EOD980SV, EOD980W, EOD982B, EOD982C, EOD982W, EOD983X, EOD984B, EOD984W, EOD985B, EOD985BU, EOD985GR, EOD985RD, EOD985W, ES635B, ES635W, ESI525B, ESI525W, SIE505SSE, EDB710X, EDB750B, EDB750W, ZHM868B, ZHM868WAEG Oven & Cooker
3210BU-B (BLACK), 3210BU-D2 (BROWN), 3210BU-G2 (GREEN), 3210BU-M (STAINLESS), 3210BU-W2 (WHITE), 5212BU-A (ALUMINIUM), 5212BU-M2 (ST.STEEL), 5212BU-W2 (WHITE), D1100-4-M, D2100-4-B (BLACK), D2100-4-D (BROWN), D2100-4-M (ST.STEEL), D2100-4-W (WHITE), D2160-1B2 (BLACK), D2160-1D2 (BROWN), D2160-1G2 (GREEN), D2160-1M2 (S.STEEL), D2160-1W2 (WHITE), D4100-1A (ALUTEC), D4100-1B (BLACK), D4100-1D (BROWN), D4100-1M (STAINLESS), D4100-1MEX, D4100-1W (WHITE), D4101-4-A (ALUTEC), D4101-4-B (BLACK), D4101-4-M (ST.STEEL), D4101-4-M(STAINLESS), D4101-4-W (WHITE), D4150-1B2 (BLACK), D4150-1M2 (ST.STEEL), D4150-1W2 (WHITE), D5701-4-A (ALUTEC), D5701-4-M(STAINLESS), D8100-1A (ALUMINIUM), D8100-1D (BROWN), D8100-1M (STAINLESS), D8100-1ME, D8100-1W (WHITE), D8800-4-A, D8800-4-M, U3100-4-B (BLACK), U3100-4-D (BROWN), U3100-4-M (ST.STEEL), U3100-4-W (WHITE), U7101-4-A, U7101-4-M, 3031B-B, 3031B-D, 3031B-W, 3215V-D, 3215V-W, AEG3030B, AEG3030W, AEG30380B, AEG30380W, D2160-1B (BLACK), D2160-1D (BROWN), D2160-1G (GREEN), D2160-1M (S.STEEL), D2160-1W (WHITE), D2160B (BLACK), D2160D (BROWN), D2160G (GREEN), D2160M (ST.STEEL), D2160W (WHITE), D4100A (ALUTEC), D4100B (BLACK), D4100D (BROWN), D4100M (STAINLESS), D4100W (WHITE), D4150-1B (BLACK), D4150-1M (STAINLESS), D4150-1W (WHITE), D81000M, D81005D (BROWN), D81005W (WHITE)Firenzi Oven & Cooker
FDO900BK, FDO900SS, FDO900WH, FDU700BK, FDU700SS, FDU700WHJohn Lewis Oven & Cooker
JLBIDOS904, JLDUOS705Parkinson Cowan Oven & Cowan

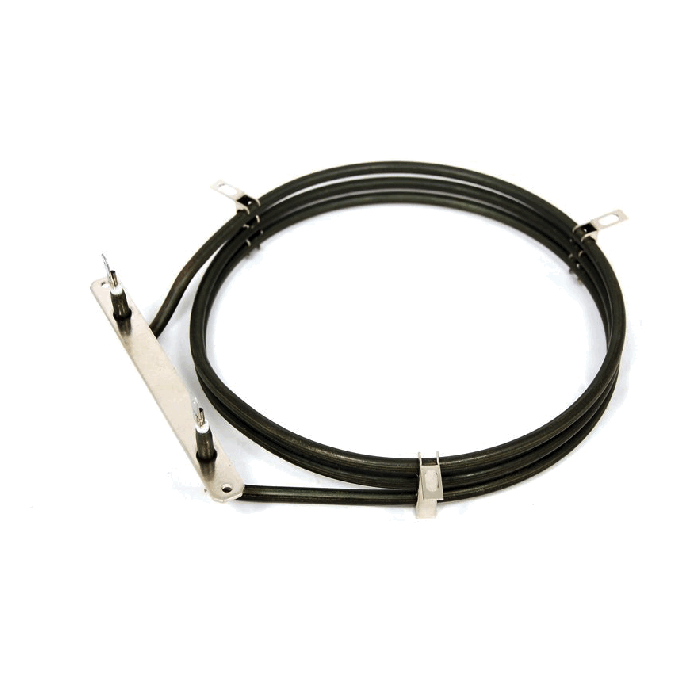

3215V-D, 3215V-W, 55GD W D/F, 55GD W D/F LPG, 60GLA W D/F, 60GLA W D/F LPG, LYRIC 55GD, OVATION 60GLA, SIM514BKL, SIM514BKN, SIM514GRL, SIM514GRN, SIM514WL, SIM514WN, SIM524WN, SIM533BKL, SIM533BKN| Further Description | Overall Length 225mm :: Internal Diameter Or Width 180mm :: Terminal Centre 93mm :: Terminal Length 38mm :: Hole Or Stud Centre 128mm :: Plate Width 18mm :: Plate Length 140mm :: 2500 Watts :: This is a 3 turn element with a wide fixing bracket |
|---|---|
| Alternate Part Number | TY14124, 3110231002, 3116448006, 3113638005, 3110231010, 082617360, EL14104, NW14101, TY1490, ELE4001, QUAELE4079, 3110231002 |
| Manufacturer | Genuine Lux2ELE |
| Genuine Part | Yes |
Oven & Cooker Spares
Fan Oven
Heating Elements
Fan oven heating elements are the most common cause of an oven failing to heat while the fan and lamp continue to work. They are usually open circuit and require replacement. Most can be replaced from the front of the oven, but a few models need removal from their housing.
The fan oven element (also known as a convection heating element) is the component responsible for heating the air that is then circulated around the oven cavity by the fan. This ensures even heat distribution and consistent cooking results. Over time, the internal filament within the element can burn out or short circuit, leading to a complete loss of heating or intermittent performance.
Signs You Need to Replace Your Fan Oven Element
A faulty fan oven heating element can manifest in several ways. If you're experiencing any of the following issues, this ELE9778 replacement element may be the solution:
-
Oven not heating at all — The most common symptom; the element has likely burned out
-
Oven blowing cold air — The fan runs but no heat is generated
-
Longer preheat times — The oven takes significantly longer than usual to reach temperature
-
Uneven cooking — Food is cooking inconsistently, with some areas undercooked and others burnt
-
Element visibly damaged — Cracks, blistering, or breakage visible on the element surface
-
Oven trips the mains — A shorted element can cause the circuit breaker to trip
Quality & Compatibility
Beware of cheap fan elements sold on auction sites and other sources—they are often poorly made with earthing failures and inferior insulation. We focus on superior quality alternatives, original or better, and avoid selling low-quality components.
Minor changes between element batches may occur, such as removal of the earth tag or differences in mounting. Both are usually easy to accommodate with a little ingenuity.
- Removal of the earth tag—element still safely earthed to chassis
- Changes in mounting method—usually accommodated with screws or bolts
Most elements are easy to fit, and we link genuine heating elements to compatible alternatives that we and technicians would recommend. Cheap and poor-quality elements are not sold.
Care & Maintenance
To maximise the lifespan of your new fan oven heating element:
-
Keep the oven clean — built-up grease and food residue can cause hotspots and premature element failure
-
Don't use abrasive cleaners on the element surface
-
Check the element periodically for signs of damage or wear
-
Ensure the oven fan is working — the element relies on the fan to distribute heat evenly; a faulty fan can cause the element to overheat
Can't Find The Fan Oven Element You Need?
If you’re unsure about compatibility or need help confirming a replacement fan oven heating element, contact us. Provide the model number and as much appliance information as possible. We will check for the correct part and suggest low-cost compatible options where available, saving you time, hassle, and money.
Contact Support TeamElectrolux
Spare Parts.
Electrolux is a global appliance manufacturer with numerous brands, some of which are exclusive to specific regions. Identifying the correct spare part can be complex due to multiple appliance variants — sometimes over thirty per type. In most cases, the Product or PNC number on the rating plate is essential.
Identification & Cross-Reference
Many Electrolux spare parts are shared across the group or used on other brands when generic alternatives are unavailable. Correct identification ensures the replacement fits perfectly and avoids ordering errors.
Group Brands & Fitment
Electrolux parts are often compatible across the group. Common brands include:
- AEG
- Electrolux
- Zanussi
- Parkinson Cowan
- Tricity Bendix
- John Lewis (most models)
- Ikea (most models from 2014 onwards)
Verify Your Electrolux Spare Parts
Provide the Product or PNC number from your appliance’s rating plate and our technical team will confirm the correct Electrolux spare parts for your specific model.
