Fan Oven Element
Replacement fan oven heating element – compatible with Bosch, Neff, Siemens, Balay, Constructa, Pitsos and Viva ovens & cookers as shown unless advised otherwise
Description
A genuine replacement fan oven heating element for the Bosch, Neff, Siemens, Balay, Constructa, Pitsos and Viva ovens and cookers listed below.

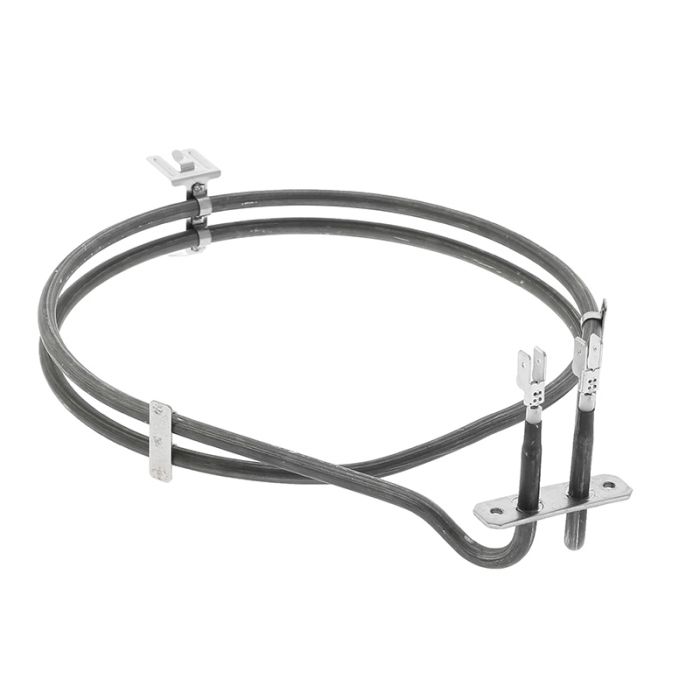

The fan oven element is the circular, looped heating element that surrounds the fan at the rear of the oven cavity. Unlike the top and base elements, which provide direct radiant heat, the fan element works with the convection fan to circulate hot air evenly throughout the oven. This allows fan-assisted cooking to run at lower temperatures, cook faster, and produce more consistent results across multiple shelves. The element sits behind the oven's rear panel, with the fan drawing air across its coils and pushing warmed air through vents into the cavity.
Fan oven elements fail gradually rather than suddenly, and the symptoms usually build up over time. The most common sign is that the oven no longer heats evenly — food on the top shelf browns faster than the bottom, or one side of a tray cooks more quickly than the other. As the element deteriorates further, the oven may take much longer to reach temperature, struggle to hold a steady heat, or fail to heat at all on fan-assisted programmes while still working on conventional settings. In some cases, the element can develop a short to earth, causing the household RCD to trip or the fuse to blow. A visibly damaged element — with a broken coil, a blistered or blackened sheath, or a scorch mark around the terminals — confirms the fault.
This fan oven element will only fit the models shown or as specifically advised and will not fit any others, even if it looks the same. It probably won't, as several look alike but aren't. Please take time to ensure this is correct before ordering. If you are unsure, please don't hesitate to contact us and ask for assistance.
Technical Notes
Specifications: Type: circular fan oven heating element. Power rating: 2100W. Voltage: 230–240V AC. Diameter: approximately 194mm (outer). Element type: two loops. Terminals: dual 6.4mm spade terminals on each element end. Mounting: threaded mounting holes 40mm apart on a fixed bracket. Weight: approximately 3kg. Product code: 00791579. Genuine BSH part.
Fitment guidance: This fan oven element is known to fit only the Bosch, Neff, Siemens, Balay, Constructa, Pitsos and Viva models listed below, and will not fit any others. The model number is normally found on the rating plate on the rear of the appliance, behind the plinth or on the inner face of the oven door. Because several elements look almost identical while differing in power rating, terminal configuration and diameter, always confirm the full model and serial number against the compatibility list rather than relying on appearance alone. If your model is not listed, contact our parts advisors with the full model and serial number before ordering.
Diagnostic tip: Before ordering, isolate the appliance from the electrical supply and allow it to cool completely. Remove the rear panel and the fan cover to access the element. Inspect the element for visible damage such as a broken or sagging coil, a blistered or blackened sheath, or a scorched terminal area. Test the element with a multimeter set to resistance: a healthy 2100W element typically reads approximately 23 to 26 ohms. A reading of infinity indicates an open circuit and a failed element. Also check for continuity between each terminal and the metal sheath — any reading here means the element has shorted to earth and must be replaced. Test the fan motor at the same time to confirm it spins freely and is not seized, as a failed fan can cause the element to overheat. Check the wiring and terminals for signs of heat damage or corrosion before fitting a new element.
Installation guide: 1. Isolate the appliance from the electrical supply at the wall and allow it to cool completely. 2. Remove the oven door and any shelves to give clear access to the rear of the cavity. 3. Remove the rear panel of the oven to expose the fan and element assembly. 4. Photograph the wiring connections before removing anything. 5. Remove the fan blade, noting its orientation, and set it aside. 6. Disconnect the spade terminals from the element. 7. Remove the screws securing the element to the rear wall and withdraw the old element. 8. Clean the rear wall and fan area, removing any grease or debris. 9. Fit the new element, ensuring it sits squarely against the rear wall and that the mounting holes align. 10. Refit the screws and tighten evenly. 11. Reconnect the spade terminals to the correct tags. 12. Refit the fan blade and the rear panel. 13. Restore the power and run the oven on a fan-assisted setting to confirm the element heats correctly and that no smoke or odour is produced from the new part.
Safety note: Always isolate the appliance from the mains before beginning any work and allow it to cool fully — residual heat in the cavity and the element can cause severe burns. The element and surrounding components may have sharp edges, so handle with care. Never touch the element with bare hands during fitting, as body oils can shorten its working life. After fitting, run the oven for a short period to burn off any protective coating on the new element and ventilate the kitchen during this first use.
BALAY OVEN & COOKER
3HB558XCT, 3HB508BC, 3HB509XC, 3HB526XDP
BOSCH OVEN & COOKER
3HB2010B0/16, 3HB2010B0/18, 3HB2010B0/20, 3HB2030X0/16, 3HB2030X0/21, 3HB2031X0/16, 3HB508BC, 3HB509XC, 3HB526XDP, 3HB526XIP, 5B10M0050/17, 5B10M0060/05, 5H10M0050/02, 5H26M0050/01, 5H26M0050/05, B4540N0EU/01, CF2M50050/14, CF2M50050/15, CF2M50050/16, CF2M50050/18, CF2M60060/04, CF6M77050/07, CF6M77050/09, CH1M00050/19, CH2M50050/02, CH2M50050/03, CH2M60060/04, CH5M00050/04, CH6M50050/18, CH6M50050/22, CH6M60060/01, CH6M60060/04, CH9M10H20Y/05, CH9M10H20Y/08, CH9M10H50Y/01, CH9M10H50Y/03, CH9M10H50Y/09, CH9M10H50Y/18, CH9M10H50Y/21, CH9M10H60Y/04, CH9M10H61Y/17, HA723510G/01, HA723510G/70, HA743530G/02, HA748230U/05, HA748230U/70, HB010FBA0/03, HB010FBA0/07, HB010FBR1T/09, HB012FBW1T/03, HB013FBB0/07, HB113FBS0S/08, HB134JES0M/15, HB134JES0M/18, HB43GS550A/61, HB534FER3T/04, HB557JYB6Z/01, HB557JYH2T/03, HB557JYH2T/06, HB557JYW5T/06, HB78GB570B/45, HBA13B160B, HBA23B250E, HBA23B251E, HBA43B250E, HBA43B250F, HBA43B251E, HBA63A450F, HBA64B152F, HBF010BA0/05, HBF010BR0Z/13, HBF010BR0Z/17, HBF010BR1S/11, HBF011BA0Q/05, HBF011BA0Q/08, HBF011BA1/07, HBF011BR0K/17, HBF011BR1M/05, HBF011BR1Z/05, HBF011BV0Q/05, HBF011BV0Q/10, HBF031BR0/12, HBF031BR0/17, HBF113BA0Q/16, HBF113BA0T/14, HBF113BR0A/15, HBF113BR0A/16, HBF113BR0A/17, HBF113BR0M/13, HBF113BR0M/15, HBF113BR1S/12, HBF113BS0Z/18, HBF114BS1/13, HBF114ES0/15, HBF114ES0R/15, HBF114ES0R/16, HBF133BA0/15, HBF133BA0/16, HBF133BR0/19, HBF133BR0N/13, HBN231E0, HBN231E1, HBN231E2, HBN78U751S, HBR43S451E, HBR73S452E, HBR76S652E, HCA744320R, HCA778321U, HCA778350U, HCA853320F, HCA854450, HCA854450A, HCE744250B, HC722234U, HGV74W155T, HKR3, HHF113BA0B18
CONSTRUCTA OVEN & COOKER
CF1K00050/07, CF2M50050/19, CH2M60050/07, CH9M10H20Y/11, CH9M10H60Y/04, CH9M10H61Y/09
NEFF OVEN & COOKER
B12P40S0FR, B15P40N0FR/01, B15P40N0FR/03, B15P40W0FR/01, B4540W0FN/06, B4560N0FN/02
PITSOS OVEN & COOKER
PHNA39250/04
SIEMENS OVEN & COOKER
HB330250S/02, HB38G4580, HB43RS551E/57, HB75AA560F/35, HB76LA560F/05, HBA43S320E, HBG34B150, HM524211T, HWS59IE50, HX79W230T, HX9R30D21/06, HX9R30D21/10
VIVA OVEN & COOKER
VE0MA0050/01
Get Expert Oven & Cooker Spare Part Help
Can't find your model number listed or need help identifying the correct part? Contact our parts advisors with your full model and serial number, and we'll verify the correct part for your appliance.
| Further Description |
Common Faults & SymptomsThe following fault codes and symptoms are commonly reported when this part begins to fail. Use this as a diagnostic guide before ordering a replacement — if more than one of these is present, the part is the likely culprit. 1
Oven Not Heating on Fan-Assisted Setting
The most common symptom of a failed fan oven element. The oven may work on conventional top and bottom heat settings, but when the fan-assisted programme is selected, the oven stays cold or only warms slightly. This is because the fan element is energised separately from the top and base elements, so a failure in the fan circuit will not affect conventional cooking. Test the fan element with a multimeter to confirm.
2
Uneven Cooking and Hot Spots
A partially failed fan element can produce uneven heat distribution even though it still glows. Food on the top shelf may brown faster than the bottom, or one side of a tray may cook more quickly than the other. This is often mistaken for a fan motor fault, but a deteriorating element is a common cause. Test the element resistance and check the fan motor at the same time.
3
Bosch / Siemens / Neff Error Code E011 or E115 (Heating Fault)
On many Bosch, Siemens and Neff ovens, a fan element fault is logged as E011 or E115, indicating that the oven is not heating within the expected time on the fan-assisted programme. The oven may stop mid-cycle and display the code, or it may complete the cycle without reaching temperature. Test the fan element, the fan motor and the temperature sensor to identify the fault.
4
Oven Takes Much Longer to Reach Temperature
A partially failed fan element may still produce some heat, but not enough to bring the oven up to temperature efficiently. Fan-assisted cycles that used to take twenty minutes to preheat may take forty or more, and the oven may never reach the set temperature on colder days. This is often an early sign of element degradation and should be investigated before the element fails completely.
5
Machine Trips the RCD or Blows the Fuse
A fan element that has shorted to earth can cause the household RCD to trip or the fuse to blow, usually when the oven is switched on or when the fan-assisted programme begins. This is a serious electrical fault and the appliance should not be used until the element has been replaced. Disconnect the element terminals and retest — if the fault disappears, the element is the cause. Check for continuity between each terminal and the metal sheath.
6
Visible Damage to the Element
After removing the element from the oven, inspect it closely. Look for a broken or sagging coil, a blistered or blackened sheath, a split in the metal, or a scorched terminal area. Any of these indicate the element has failed and should be replaced. Do not attempt to repair a damaged element.
7
Element Reads Open Circuit on a Multimeter
The most direct test of a fan oven element. Isolate the appliance, disconnect the element terminals and measure the resistance across the terminals with a multimeter. A healthy 2100W element reads approximately 23 to 26 ohms. A reading of infinity indicates an open circuit and a failed element. Also check for continuity between each terminal and the metal sheath — any reading here means the element has shorted to earth and must be replaced.
8
Fan Motor Not Spinning or Making Noise
The fan element works in conjunction with the fan motor to circulate heat. If the fan is seized or noisy, the element may overheat and fail prematurely. When replacing the element, always check that the fan spins freely by hand and that the fan blade is not obstructed. A noisy fan usually indicates worn bearings, which should be addressed at the same time to prevent repeat element failure.
9
Burning Smell or Smoke During Use
A sharp burning smell coming from the oven can indicate that the element or its wiring is overheating. In some cases a small amount of smoke may be visible. This is often caused by grease or food debris that has collected on the element and is burning off, but if the smell persists after cleaning the rear wall, the element itself may be failing. Stop using the oven and isolate it if the smell is accompanied by sparks or visible glowing at the terminals.
10
Intermittent Heating or Cycles Cutting Out
An element that is beginning to fail can cause the oven to produce heat intermittently, or to cut out part-way through a cycle and then resume. This is often caused by a partially broken element coil or an intermittent connection at the terminals. Monitor the oven through a full fan-assisted cycle and note when the heat stops — if the fault coincides with the fan element being energised, the element is the likely cause.
Before Ordering, Check These First
Disclaimer: The fault codes and symptoms listed above are intended as a general guide to assist with diagnosis. They cannot be taken as a definitive diagnosis of any particular problem, and other components may produce similar symptoms. Always confirm the fault with proper testing before ordering parts. |
|---|---|
| Alternate Part Number | BSH00791579, 5055002053832, ELE2086EGO, ELE2086 |
| Manufacturer | BSH |
| Genuine Part | Yes |
Oven & Cooker Spares
Fan Oven
Heating Elements
Fan oven heating elements are the most common cause of an oven failing to heat while the fan and lamp continue to work. They are usually open circuit and require replacement. Most can be replaced from the front of the oven, but a few models need removal from their housing.
The fan oven element (also known as a convection heating element) is the component responsible for heating the air that is then circulated around the oven cavity by the fan. This ensures even heat distribution and consistent cooking results. Over time, the internal filament within the element can burn out or short circuit, leading to a complete loss of heating or intermittent performance.
Signs You Need to Replace Your Fan Oven Element
A faulty fan oven heating element can manifest in several ways. If you're experiencing any of the following issues, this ELE9778 replacement element may be the solution:
-
Oven not heating at all — The most common symptom; the element has likely burned out
-
Oven blowing cold air — The fan runs but no heat is generated
-
Longer preheat times — The oven takes significantly longer than usual to reach temperature
-
Uneven cooking — Food is cooking inconsistently, with some areas undercooked and others burnt
-
Element visibly damaged — Cracks, blistering, or breakage visible on the element surface
-
Oven trips the mains — A shorted element can cause the circuit breaker to trip
Quality & Compatibility
Beware of cheap fan elements sold on auction sites and other sources—they are often poorly made with earthing failures and inferior insulation. We focus on superior quality alternatives, original or better, and avoid selling low-quality components.
Minor changes between element batches may occur, such as removal of the earth tag or differences in mounting. Both are usually easy to accommodate with a little ingenuity.
- Removal of the earth tag—element still safely earthed to chassis
- Changes in mounting method—usually accommodated with screws or bolts
Most elements are easy to fit, and we link genuine heating elements to compatible alternatives that we and technicians would recommend. Cheap and poor-quality elements are not sold.
Care & Maintenance
To maximise the lifespan of your new fan oven heating element:
-
Keep the oven clean — built-up grease and food residue can cause hotspots and premature element failure
-
Don't use abrasive cleaners on the element surface
-
Check the element periodically for signs of damage or wear
-
Ensure the oven fan is working — the element relies on the fan to distribute heat evenly; a faulty fan can cause the element to overheat
