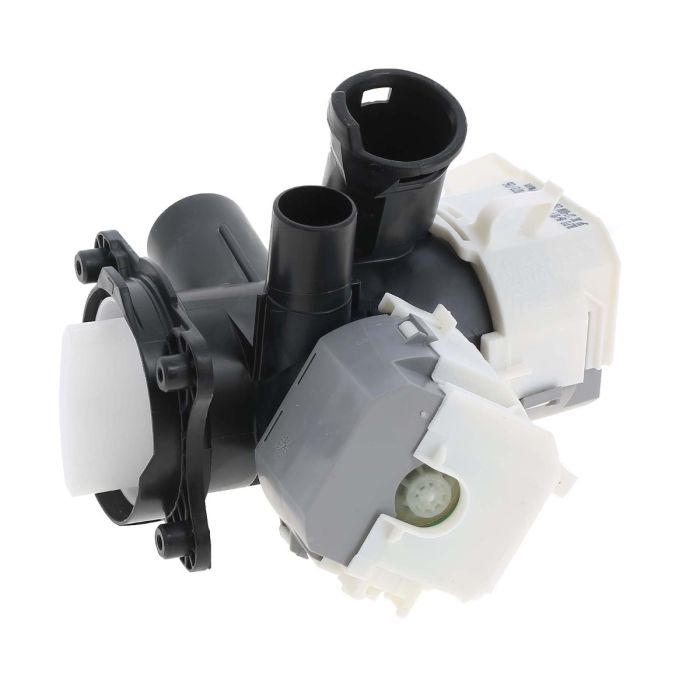

Washing Machine Drain pump
Replacement washing machine drain pump – compatible with Bosch, Neff and Siemens as shown unless advised otherwise
Description
A genuine drain pump that removes the used water from the drum at the end of each wash and rinse cycle.
This pump fits more models than shown, it is used in over 1100 models in the WAV, WAX, WM14, and WM16 series
As an original Bosch, Neff, and Siemens component, it matches the pump fitted at the factory, with the same flow rate, impeller design, and electrical characteristics. A genuine pump preserves the machine's drain timing and ensures the pressure switch and control module continue to receive the expected signals throughout the cycle.
Drain pumps commonly fail because lint, hair, and small objects build up around the impeller, or because the bearings seize after years of use. Typical symptoms include water standing in the drum at the end of a programme, a humming noise with no drainage, repeated drain error codes, and a filter housing that fills with water more slowly than usual. Because a blocked filter or kinked hose can cause the same symptoms, replace the pump only after you've ruled out these possibilities.
This part is only known to fit the models shown or as advised and will not fit any others because, even if it looks the same, it probably won't. Several may look alike but not be; please take time to confirm this is correct before ordering. If you are unsure, please don't hesitate to contact us and ask for assistance.
Technical Notes
Specifications: Genuine drain pump for Bosch, Neff and Siemens washing machines. Motor type: shaded pole induction motor. Voltage: 230V ~ 50Hz. Power consumption: approximately 30W. Outlet connection: push-fit hose spigot. Mounting: bayonet or screw-fixed housing with gasket. Product code: 00146156.
Safety note: This component operates on mains voltage and is in contact with water. Always isolate the appliance from the electrical supply and turn off the water inlet before beginning any work. Drain any residual water from the filter housing and sump hose before removing the pump, as this water may be hot and may contain detergent residue. Wear gloves and place a shallow tray and towels beneath the appliance to catch spillage.
Fitment guidance: This pump fits only the Bosch, Neff and Siemens washing machine models listed in the compatibility matrix below. Model numbers can be found on the rating plate on the inner edge of the door or on the rear panel of the appliance.
BOSCH WASHING MACHINE
WAV28E41, WAV28E41/01, WAV28E42, WAV28E42/01, WAV28G40, WAV28G40/01, WAV28G40/04, WAV28GH1OE, WAV28GH1OE/01, WAV28GH1OE/04, WAV28GH1OE/06, WAV28GH1OE/07, WAV28GH1OE/09, WAV28GH9II, WAV28GH9II/01, WAV28GH9IT, WAV28GH9IT/01, WAV28HH1OE, WAV28HH1OE/01, WAV28HH2OE, WAV28HH2OE/01, WAV28HH2OE/04, WAV28HH2OE/06, WAV28HH2OE/07, WAV28HH2OE/08, WAV28IH1OE, WAV28IH1OE/01, WAV28IH1OE/04, WAV28IH1OE/06, WAV28IH1OE/07, WAV28K00CS, WAV28K00CS/01, WAV28K20TH, WAV28K20TH/01, WAV28K20TH/04, WAV28K20TH/06, WAV28K20TH/07, WAV28K20TH/09, WAV28K40, WAV28K40/01, WAV28K40AU, WAV28K40AU/01, WAV28K40AU/04, WAV28K40AU/07, WAV28K40AU/09, WAV28K4001, WAV28K42, WAV28K42/01, WAV28K80SA, WAV28K80SA/01, WAV28K80SA/04, WAV28K80SA/06, WAV28K80SA/07, WAV28K80SA/09, WAV28K81SA, WAV28K81SA/01, WAV28K81SA/07, WAV28K81SA/09, WAV28K90ME, WAV28K90ME/01, WAV28K90ME/04, WAV28K90ME/07, WAV28K90ME/09, WAV28KH0GC, WAV28KH0GC/01, WAV28KH0GC/04, WAV28KH0GC/06, WAV28KH0GC/07, WAV28KH0GC/09, WAV28KH0TR, WAV28KH0TR/01, WAV28KH0TR/04, WAV28KH0TR/06, WAV28KH0TR/07, WAV28KH0TR/09, WAV28KH3GB, WAV28KH3GB/01, WAV28KH9GB, WAV28M80TR, WAX28EH0TR, WAX28FH2TR/06, WAX32EH0BY/04, WAX32KH2BY/06, WAX32K41AU/01, WAX32M41AU/01, WAX32ME1FG/01, WAXH2E90NL, WM14VKH9NL, WM14VL40, WM14VL40/01, WM14VG40/01, WG56A6B90W/06
NEFF WASHING MACHINE
TBC – Please check your model number with our team to confirm fitment.
SIEMENS WASHING MACHINE
WM12E160ES, WM14E360ES, WM14E362ES, WM16XDH1UA/07, WM16XK40FG/07, WM16XLH2FF/06, WM6HVL91PL/04
Get Expert Washing Machine Spare Part Help
Can't find your model number listed or need help identifying the correct part? Contact our parts advisors with your full model and serial number, and we'll verify the correct part for your appliance.
| Further Description |
Common Faults & SymptomsThe following fault codes and symptoms are commonly reported when this part begins to fail. Use this as a diagnostic guide before ordering a replacement — if more than one of these is present, the part is the likely culprit. 1
Error Code E18 / F18 — Drain Fault
Displayed by Bosch, Neff and Siemens washing machines when the appliance fails to drain within the expected time. Water may remain standing in the drum at the end of the cycle. E18 is one of the most common codes associated with a failing or blocked drain pump, but a blocked filter or kinked hose can trigger the same code, so these should be checked first.
2
Error Code E02 — Drain Time Exceeded
On some Bosch and Siemens models, E02 indicates that the drain stage took longer than the module allows. The machine may attempt to drain several times before shutting down. A pump that is worn but not yet seized often triggers this code intermittently before failing completely.
3
Water Standing in the Drum After the Cycle
The most visible symptom of a failing drain pump. Water remains in the drum at the end of a programme, or drains only partially. In some cases the water drains slowly over several minutes rather than in the usual short burst. This can also indicate a partially blocked filter, so check that first.
4
Humming Noise With No Drainage
The pump motor can be heard running, but no water leaves the drum. This usually indicates that the impeller has broken free from the motor shaft or that debris is jamming the impeller. Isolate the appliance and check the filter housing for foreign objects before ordering a replacement.
5
Silent Pump — No Sound at All
If the machine reaches the drain stage and there is no hum or movement from the pump at all, the motor winding may have failed open-circuit. Confirm with a resistance check across the pump terminals before ordering, and also confirm that the module is supplying voltage to the pump during the drain stage.
6
Grinding or Rattling Noise During Drain
A grinding or rattling sound from the pump area indicates that debris has entered the impeller housing or that the bearings are worn. If the noise is intermittent and accompanied by reduced drainage, a foreign object such as a hair grip, coin or bra wire is the likely cause. The filter housing should be opened and inspected first.
7
Water Leaking From the Pump Housing
A worn pump seal or a distorted housing gasket can allow water to seep from the pump area during the drain stage. This is often visible as a small puddle beneath the machine. If the pump itself is sound, a replacement gasket or seal may be sufficient, but a pump that has been running with a damaged seal is usually close to failure and is best replaced.
8
Cycle Stopping Before the Final Spin
The machine may complete the wash and rinse stages but stop before the final spin, leaving clothes saturated. This is a safety behaviour triggered when the module detects that the drum has not drained. The pump is one of the first components to check when the machine refuses to spin, along with the pressure switch and the sump hose.
Fitment GuidanceThis drain pump is compatible only with the Bosch, Neff and Siemens washing machine models listed in the compatibility matrix above. Even if a pump looks visually similar, the flow rate, impeller design and connector layout can differ between models, so a part that appears to fit may not drain correctly.
Diagnostic TipsBefore concluding that the pump has failed, carry out these checks to rule out other causes. A multimeter is required for the electrical tests.
Installation GuideThese steps describe the general procedure for replacing a washing machine drain pump. The exact sequence varies between models, so always consult the appliance service manual where available.
Before Ordering, Check These First
Disclaimer: The fault codes and symptoms listed above are intended as a general guide to assist with diagnosis. They cannot be taken as a definitive diagnosis of any particular problem, and other components may produce similar symptoms. Always confirm the fault with proper testing before ordering parts. |
|---|---|
| Alternate Part Number | BSH00146156, 5055004954649, 146156, 00145894, 2572522 |
| EAN Number | 00146156 |
| Manufacturer | BSH |
| Genuine Part | Yes |
Washing Machine
Drain Pumps
Drain pumps remove water from your washing machine or washer dryer. Faulty pumps can cause leaks, noises, or prevent the machine from draining properly.
About Washing Machine Drain Pumps
The drain pump runs every time your washer drains, meaning it’s in constant use. Cheap pumps without thermal cutouts can be a fire risk, so quality matters. Sludge and detergent residues can block the pump, causing odors or failure.
Common issues include noisy operation, screeching sounds, or complete failure to drain. Regular maintenance, such as cleaning the filter monthly, helps prevent these problems and extends pump life.
